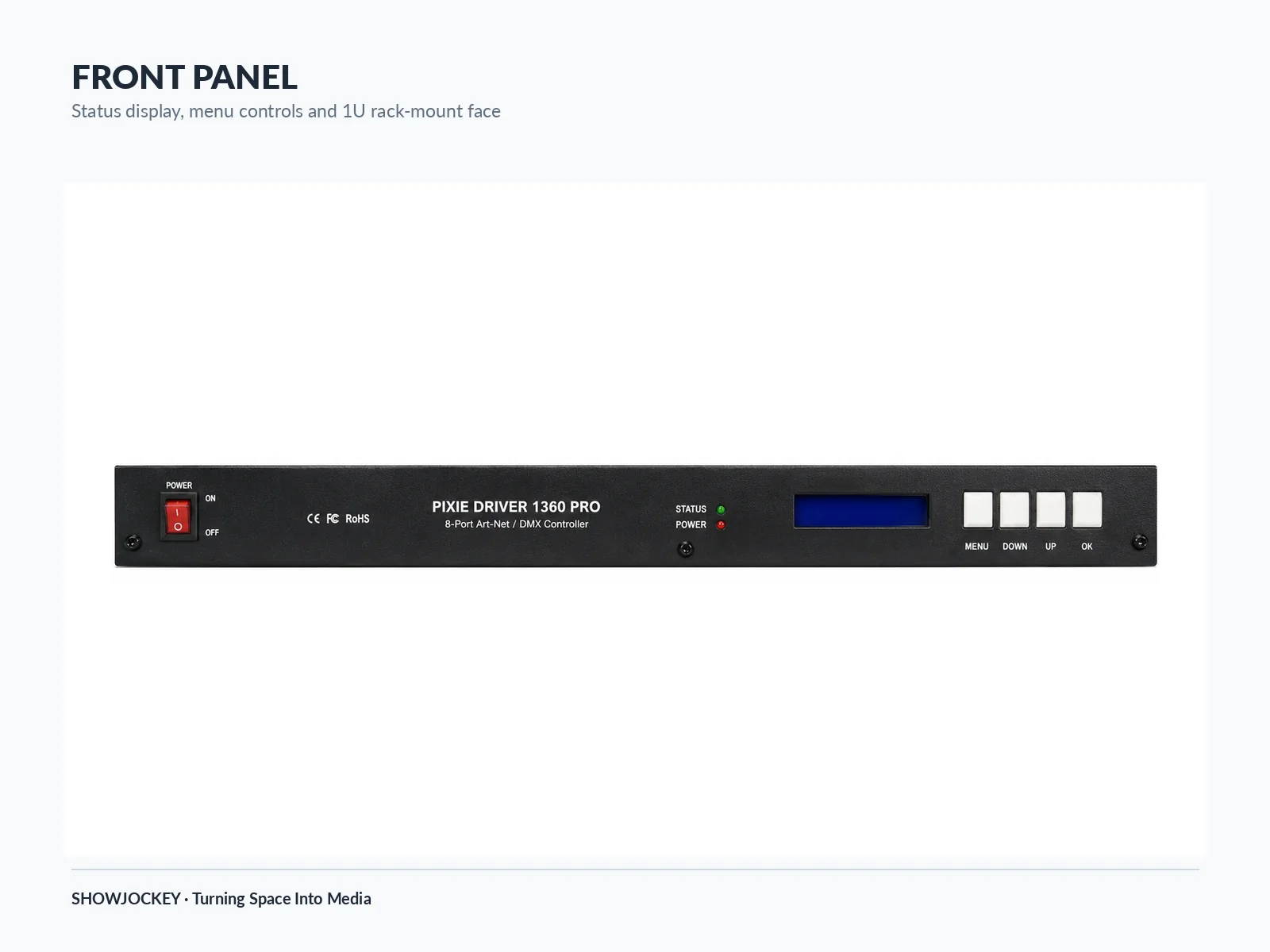

1U Art-Net to Powered DMX Pixel Driver
Pixie Driver P1360 Pro™

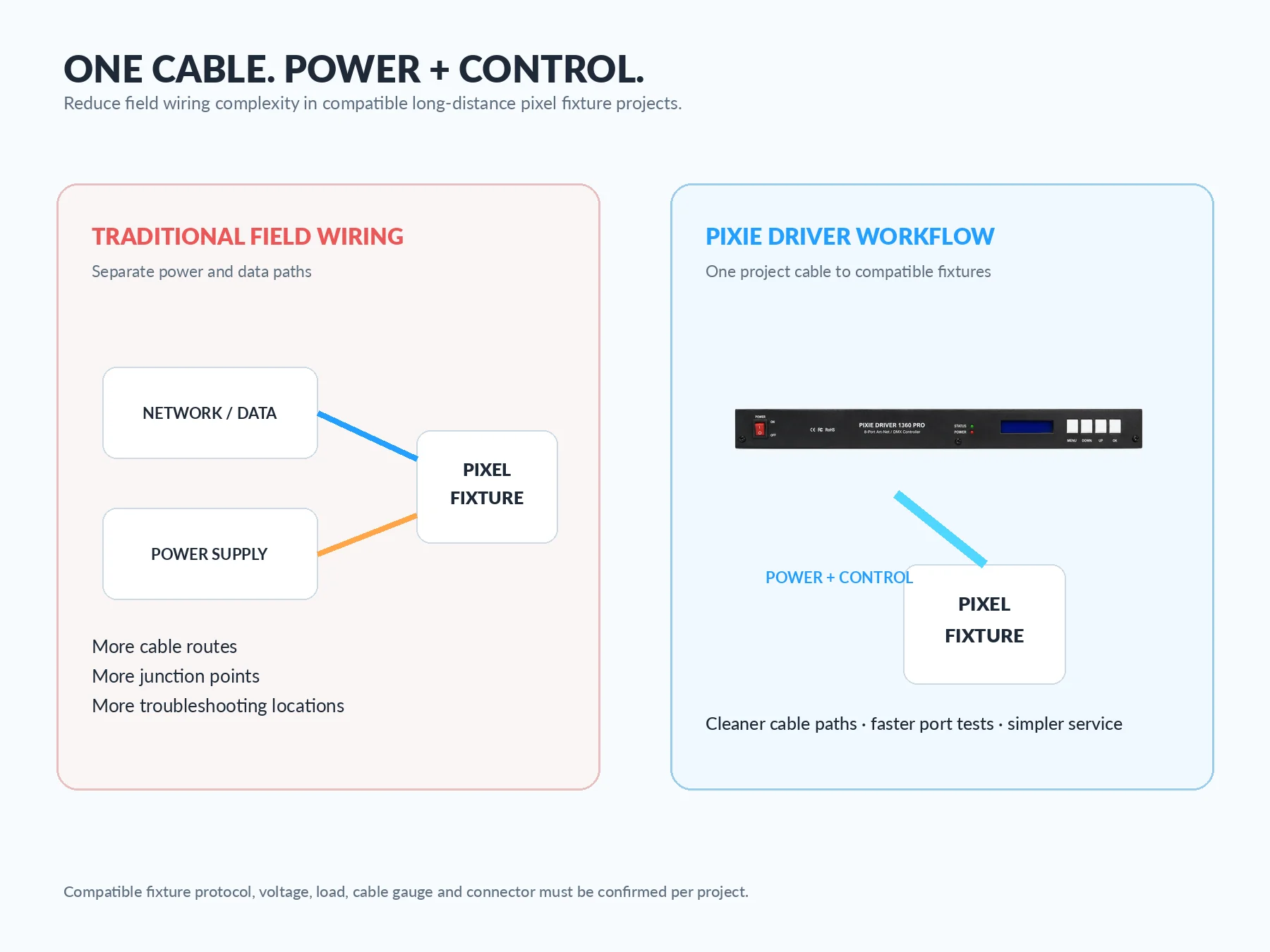

One Cable. Power + Control.
Send Art-Net from your media server and distribute control data plus fixture power through eight powered pixel outputs—built for cleaner long-distance wiring and faster on-site service.
8 Art-Net Universes8 Powered Pixel OutputsUp to 1,360 RGB Pixels1U Rack-Mount Format40m+ Tested Configuration Available
The installation problem
Long-Distance Pixel Wiring Gets Complicated Fast
As cable distance increases, pixel projects can require separate power runs, data lines, local power boxes, more junction points and more time spent tracing faults. Voltage drop, connector loss and uneven output loading can also turn a simple pixel layout into a difficult on-site commissioning job.
Pixie Driver P1360 Pro™ is designed for compatible fixtures that need a cleaner, more serviceable connection between the control rack and the installed pixel product.

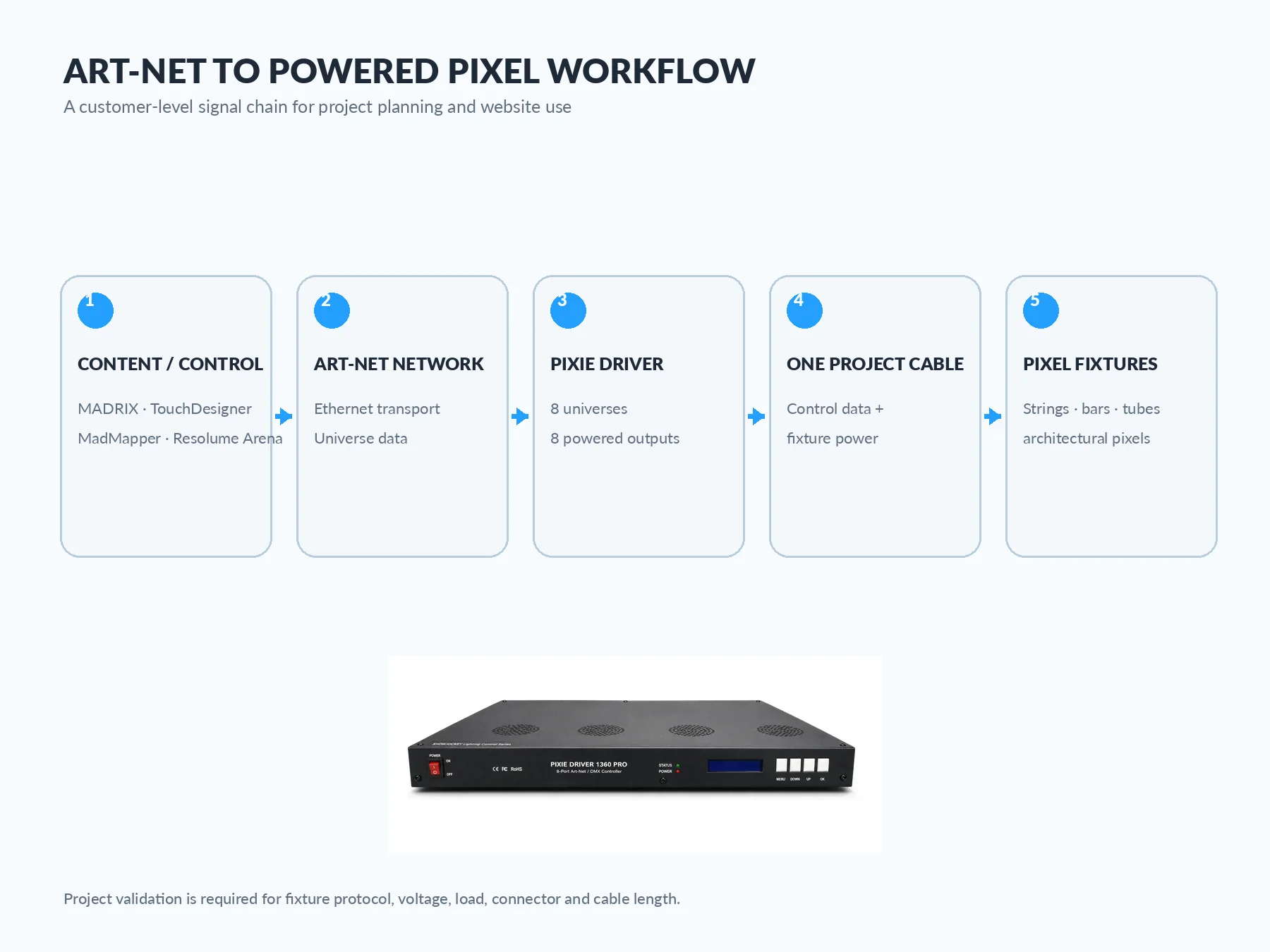

How it works
Art-Net In. Powered Pixel Outputs Out.
Send Art-Net from your media server or lighting software through Ethernet. Pixie Driver P1360 Pro™ receives eight universes and distributes control data plus fixture power through eight powered pixel outputs to compatible strings, bars, tubes and architectural pixel fixtures.
- Cleaner cable paths between the control rack and the fixture.
- Fewer field power boxes in supported project configurations.
- Port-by-port organization for testing and maintenance.

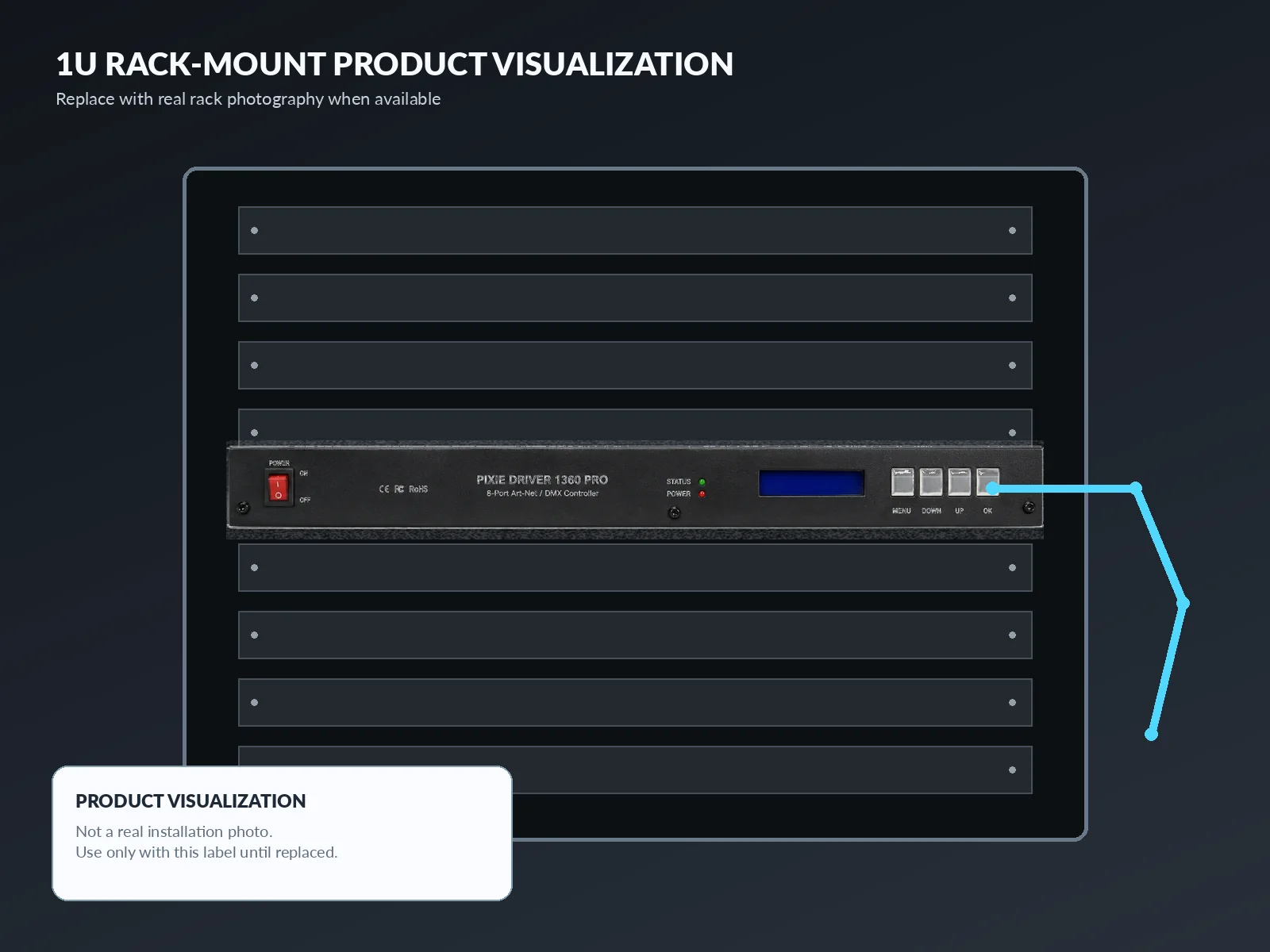

- A professional 1U rack format for installation and service.
System boundary

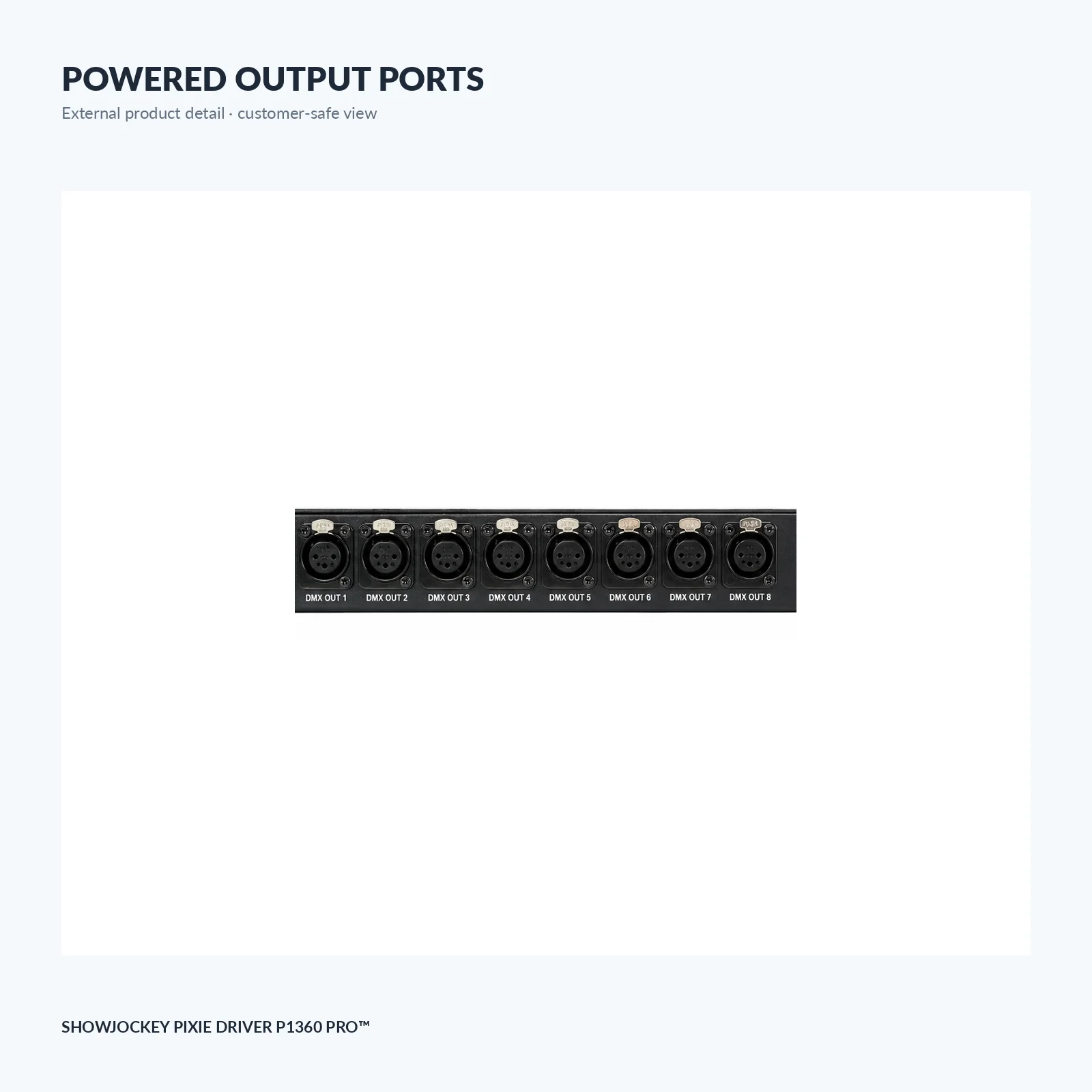

Eight Universes. Eight Powered Outputs.
One controller receives eight Art-Net universes and provides eight powered pixel outputs. Using the standard RGB DMX reference of 170 pixels per universe, the system supports up to 1,360 RGB pixels. Final usable capacity depends on fixture channel mode, protocol, refresh-rate target and project wiring.
Tested project configuration
40m+ Tested Configurations Available
For validated combinations of fixture voltage, cable gauge, connector, load and output allocation, SHOWJOCKEY can prepare a 40m+ tested configuration. The distance is a project-tested option-not a universal guarantee for every fixture and cable.
40m+ tested configurations are available. Actual distance depends on cable gauge, fixture voltage, load, connector loss, output allocation and installation environment.
Power configurations
Choose the Power Configuration by Project Load
P1360-700: 24V / 700W for medium-power fixtures. P1360-1400: 24V / 1400W for higher-load engineering projects. Final continuous load requires engineering approval.
Continuous usable load must be confirmed according to output allocation, connector rating, cable sizing, ventilation and ambient temperature.
Applications
Built for Long-Distance Pixel Fixtures
Pixel Strings
Compatible addressable strings for stage, exhibition and architectural projects.
Pixel Bars
Organized output runs for programmable bars and linear lighting elements.
Pixel Tubes
Central rack control and power distribution to compatible tube fixtures.
Architectural Pixels
Permanent facades, ceilings and feature-lighting installations.
Stage & Exhibition
Art-Net workflows from media servers and lighting software.
Spatial Elements
Smaller volumetric, suspended or sculptural pixel-lighting elements.

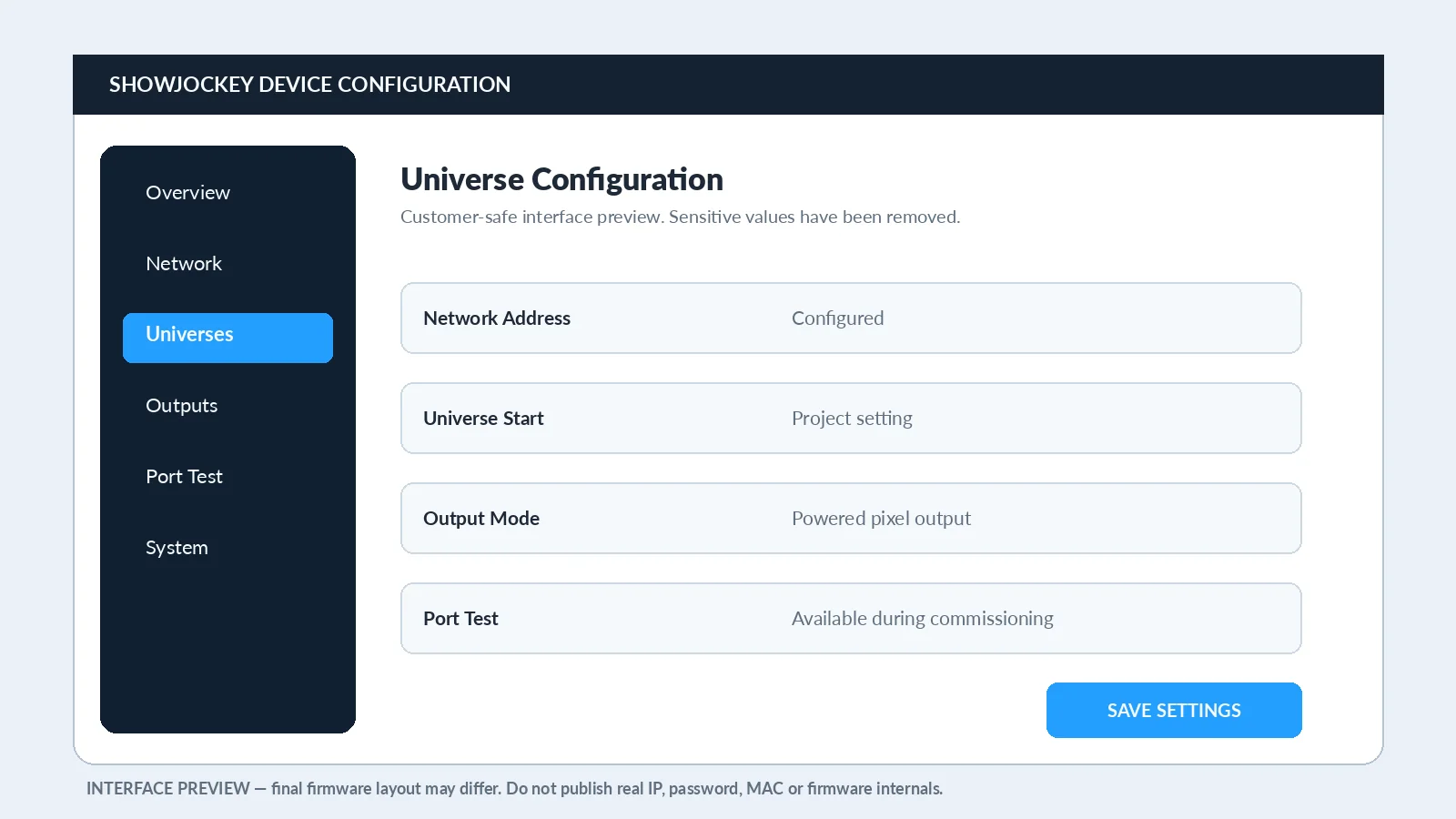

Configuration
Configure, Test and Commission Before Site
Before shipment, confirm the network plan, universe allocation, fixture protocol, voltage, color order, channel mode, pixel quantity and maximum cable load. Use port-level testing to verify each output before final packing.
Send the fixture protocol, operating voltage, pixel quantity, maximum cable distance, power per fixture and installation environment.
Customer-safe specifications
Public Technical Data
Product type1U Art-Net to Powered DMX Pixel Driver
Network inputArt-Net over Ethernet
Input universes8
Powered outputs8
RGB pixel referenceUp to 1,360 RGB pixels based on 8 × 170 RGB pixels
Power configurationP1360-700: 24V / 700W; P1360-1400: 24V / 1400W. Final continuous load requires engineering approval.
Enclosure1U rack-mount metal enclosure
Distance40m+ tested configurations available; actual distance depends on project conditions.
Water protectionProtected, ventilated rack/control enclosure unless otherwise rated.
IC compatibilityConfirmed for the customer fixture protocol / IC before production.
Dimensions, weight, per-port current, pinout, certification and detailed wiring information are kept out of the public page until engineering-approved documents are available.
FAQ
Common Questions
What is the Pixie Driver P1360 Pro™?
It is a 1U Art-Net to Powered DMX Pixel Driver for compatible long-distance pixel fixtures. It receives eight Art-Net universes and distributes control data plus fixture power through eight powered outputs.
How many RGB pixels can it control?
The standard reference is up to 1,360 RGB pixels, calculated as eight universes × 170 RGB pixels. Final capacity depends on fixture channel mode, protocol, refresh-rate target and firmware profile.
Does it guarantee a 40m connection?
No. SHOWJOCKEY can prepare 40m+ tested configurations for validated combinations of voltage, cable gauge, connector, load, output allocation and environment.
Does one cable carry both data and power?
For compatible fixtures and approved project wiring, the powered output cable carries control signal and fixture power. Connector, pinout, cable and load must be confirmed before production.
Which software can send content?
It fits Art-Net workflows from MADRIX, TouchDesigner, MadMapper and Resolume Arena. Verify the actual software version and network plan.
Can it control SHOWJOCKEY Spatial Matrix modules?
No. Spatial Matrix modules use their own integrated Art-Net architecture. Use Pixie Driver for compatible powered pixel fixtures.
Which power version should I choose?
Choose according to fixture voltage, power per pixel, output allocation, cable size, ventilation and ambient temperature. Final engineering approval is required.
Is the controller waterproof?
Install it in a protected, ventilated rack or control enclosure unless a different environmental rating is explicitly confirmed.
Downloads
English Datasheet
Use the public datasheet for early review, then send fixture and cable requirements for project-specific configuration.
Related routes
Plan the Full Pixel System
Start a project
Send Us Your Fixture and Cable Requirements
To recommend the correct configuration, send the fixture protocol, operating voltage, pixel quantity, maximum cable distance, power per fixture and installation environment.
