Spatial Bar is a modular programmable pixel bar system for building geometric lighting structures and spatial line installations. Public layouts currently use confirmed 60° and 120° connector logic for X-shapes, hexagons, honeycomb walls, stage frames, exhibition entrances and commercial ceiling features.
Systems
Spatial Bar
Modular Programmable Pixel Bar System
Core points
- Modular bar structure

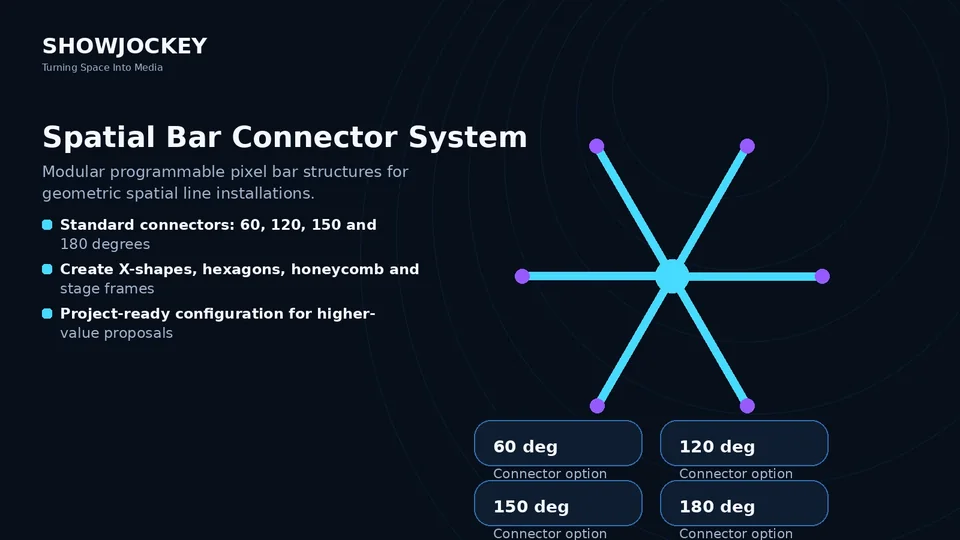

- Confirmed 60° and 120° connector logic
- Standardized project configuration
- Programmable pixel effects
- Suitable for high-value project proposals
- Final bar length, connector mix, suspension method and cable route are confirmed by technical layout review
Product typeModular programmable pixel bar system
Confirmed connector angles60° and 120° public layout logic
Typical geometryX-shapes, hexagons, honeycomb walls, stage frames and ceiling features
Control routeArt-Net to SPI workflow through selected engine
Engineering scopeConfirmed by layout, rigging, cable route and service access
Engineering approval
- Bar length, pixel count, supply method, IP rating, weight, connector drawing and safety cable method require the current approved engineering sheet.
- Suspension, structure, load path and service access must be checked against the final installation layout.
- Public connector angles describe the current layout logic; project-specific connector mixes require layout approval.
Use Spatial Bar when geometry must read as structure.
Share the target geometry, ceiling or rigging condition, viewing direction and content behavior so SHOWJOCKEY can prepare a confirmed connector and control route.
Project input
Send size, viewing distance, installation environment and content intent.
SHOWJOCKEY will use these details to recommend the right system route, control method and next engineering questions.
