描述
Features
- Flexible, easy to bend, to meet different shapes
- Automatic address,easy to use
- Length freely customizable by cutting
- Small size easy project usage
- Connect to power supply one time in 10M length
- Easy for installation and replacement DMX protocol
- t achieves the function of fading,color running,sound control,flash or video display

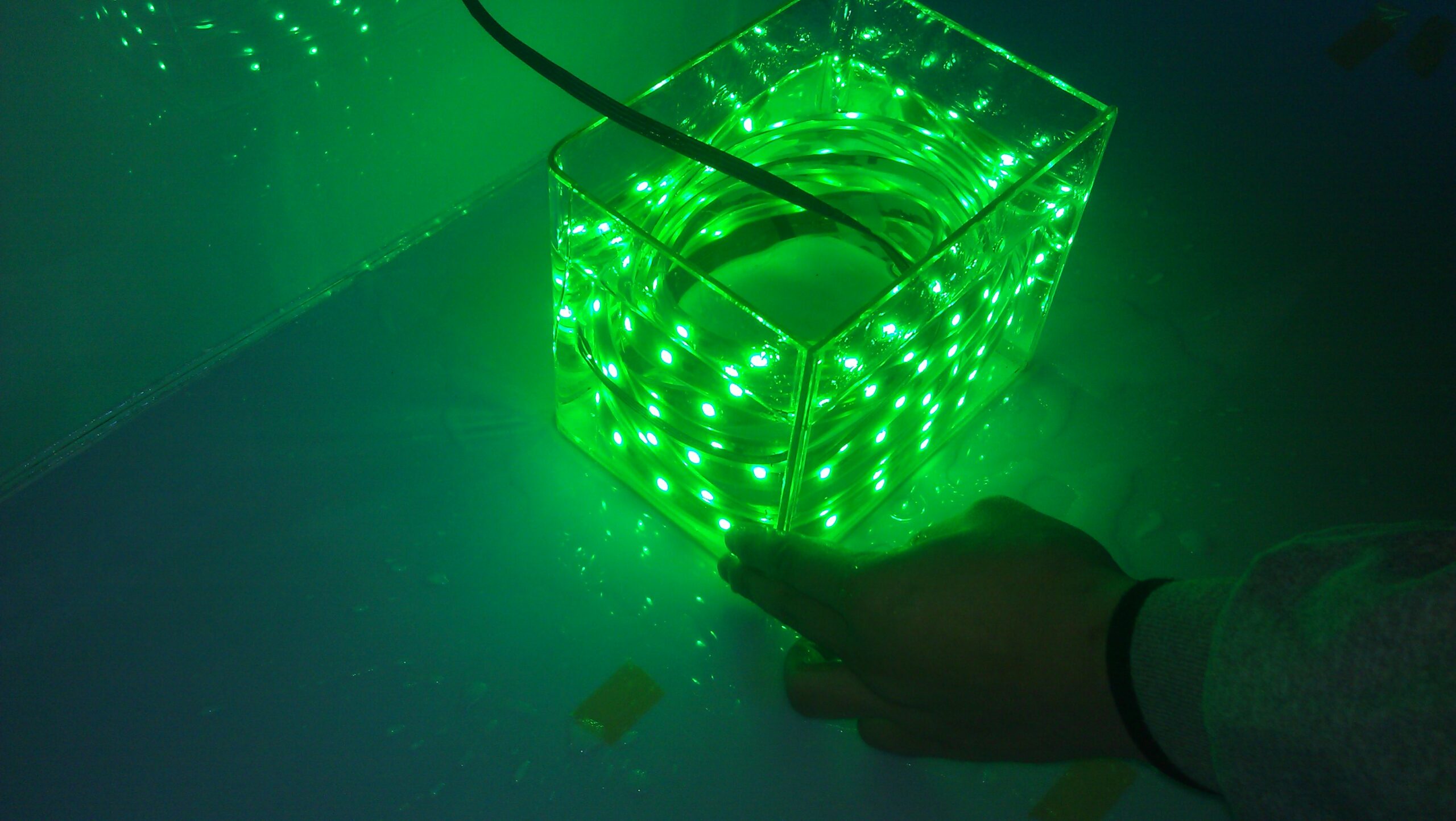

- With protective casing, can be used outdoors
Specifications
| Optical: | Light Source: SMD RGB 3-in-1 LED’s |
| LED QTY: 60 LEDs | |
| Color Resolution: 8 bits per color (24 bit per pixel) | |
| Viewing Angle: 120 x 120 degrees | |
| Pixels Per Fixture: 10 pixels | |
| Illuminance – white frost filter (included): 20 lm | |
| Illuminance – black stealth filter (installed): 10 lm | |
| Pixel Pitch (pixel center-to-center) 16.5mm | |
| 50,000 Hours Life | |
| PWM (Pulse Width Modulation): 3.6KHz | |
| ELECTRICAL: | Power and Current: 15 W, 0.63 A @ DC24 V |
| Optional ITEMS: | Round frosted cover (x1) |
| Aluminum Profile | |
| Clips | |
| Back tape | |
| 3 or 4 Core cable | |
| Construction / Physical | Dimensions: 39.37 x 0.472 x 0.197 in (1000 x 12 x 5 mm) |
| Weight: 0.22 lb (0.8 kg) | |
| Exterior Color: Black | |
| Housing Material: PCB | |
| Certifications / Qualifications | CE, FCC |
| IP Rating: IP20, dry location | |
| Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C) | |
| Required Accessories | Any DMX Controller |
| Control | Control Protocol: Art-Net, Kling-Net, sACN |
| Control Channels: 30 | |
| CONNECTIONS: | Data Connectors: 4-pin |
| 4-pin Power/Data In/Out | |
| Physical Linking: Tape Back | |
| Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 22 AWG) | |
| Total max. cable length (shielded cables) between Controller and last fixture: 328 ft (100 m) | |
| Max. cable length (shielded cables) between Controller and first fixture: 328 ft (100 m) | |
| Max. cable length (shielded cables) between fixtures: 33 ft (10 m) |
Diagram
Connection Protocols
Project Effects
