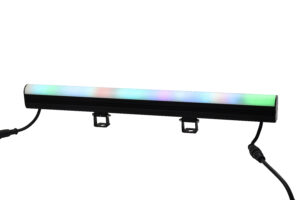

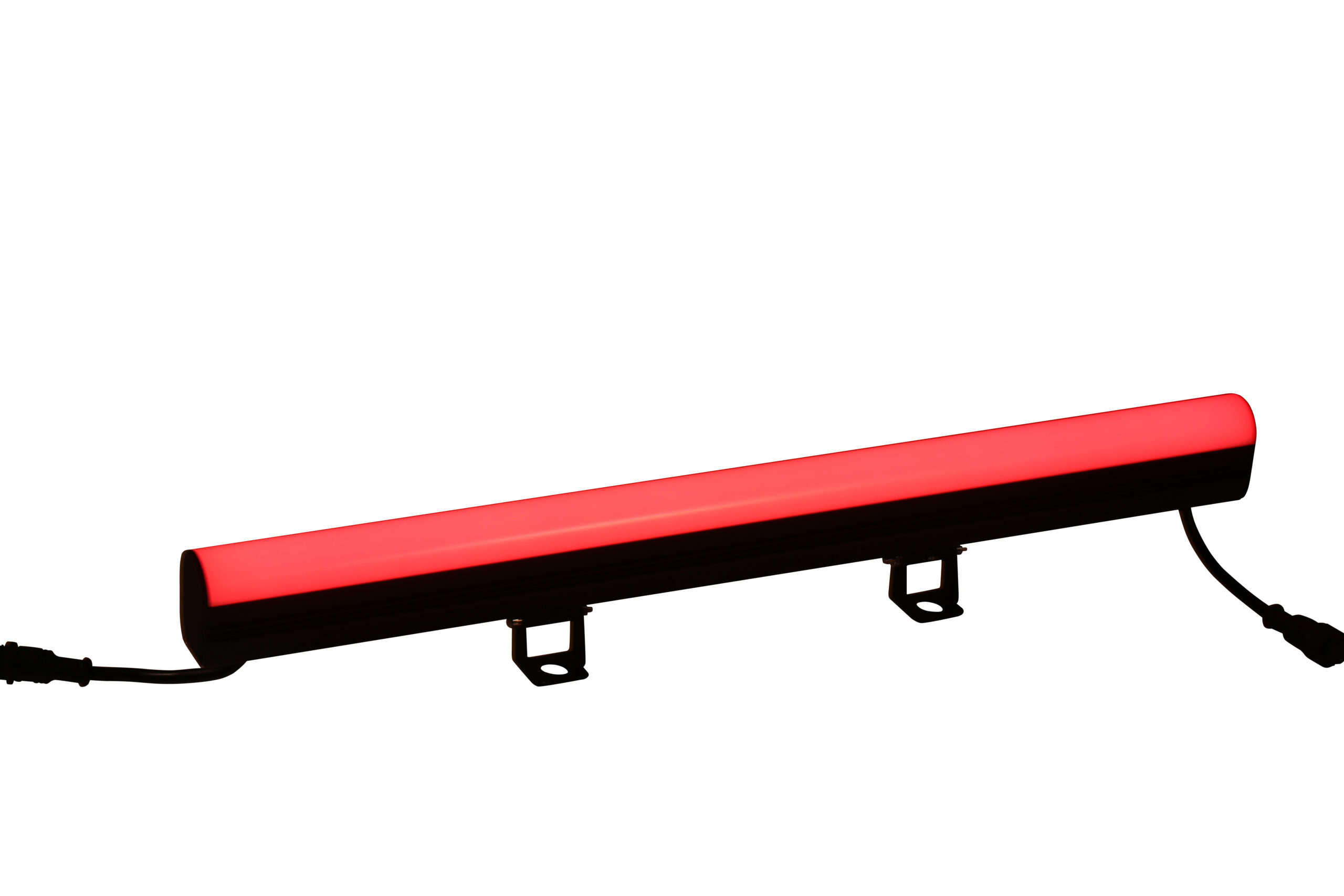

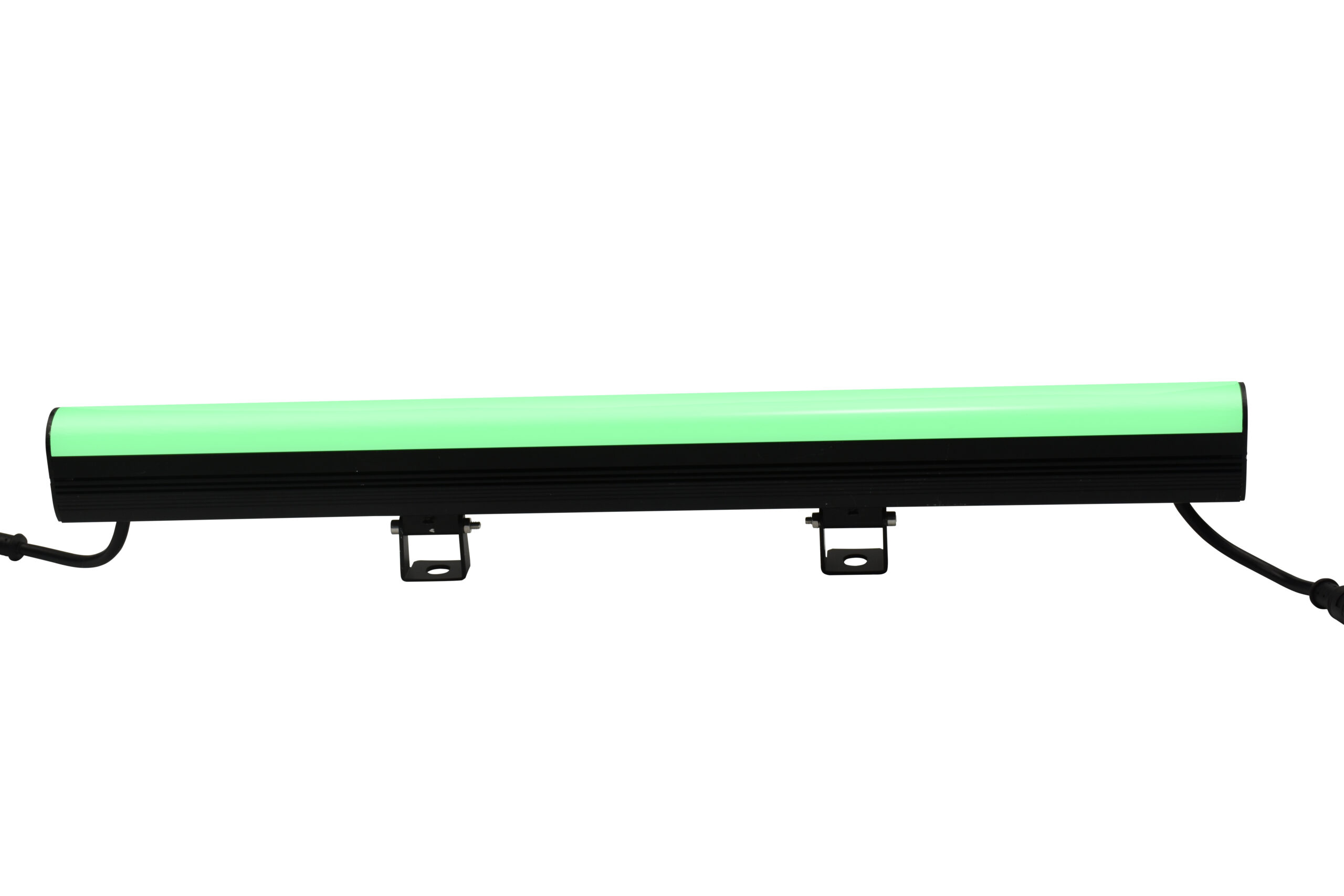

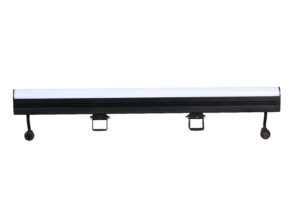

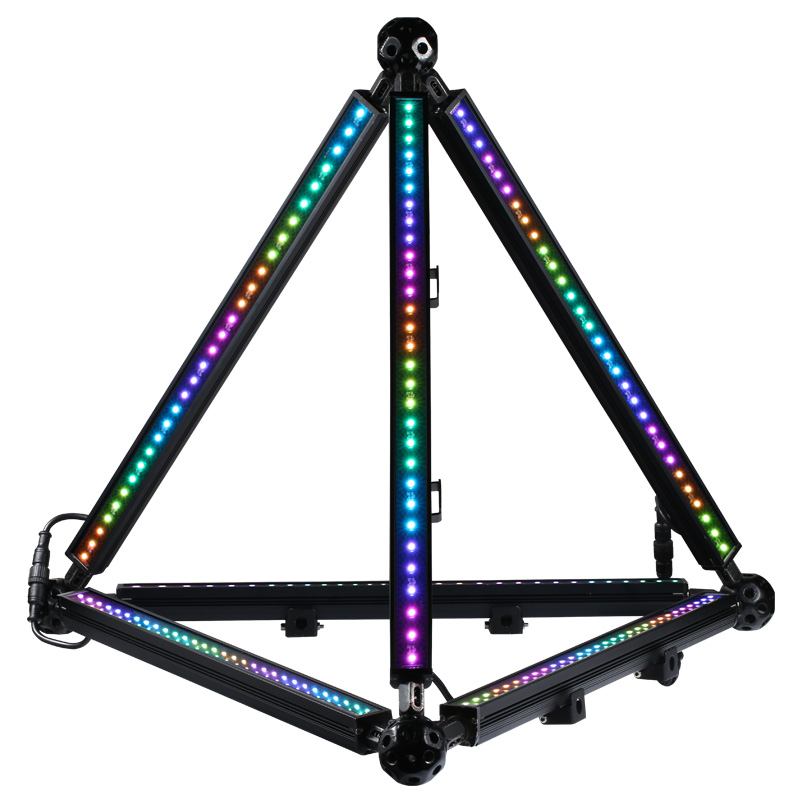

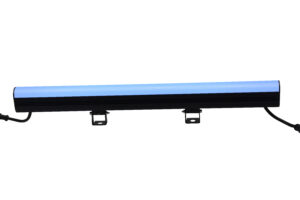

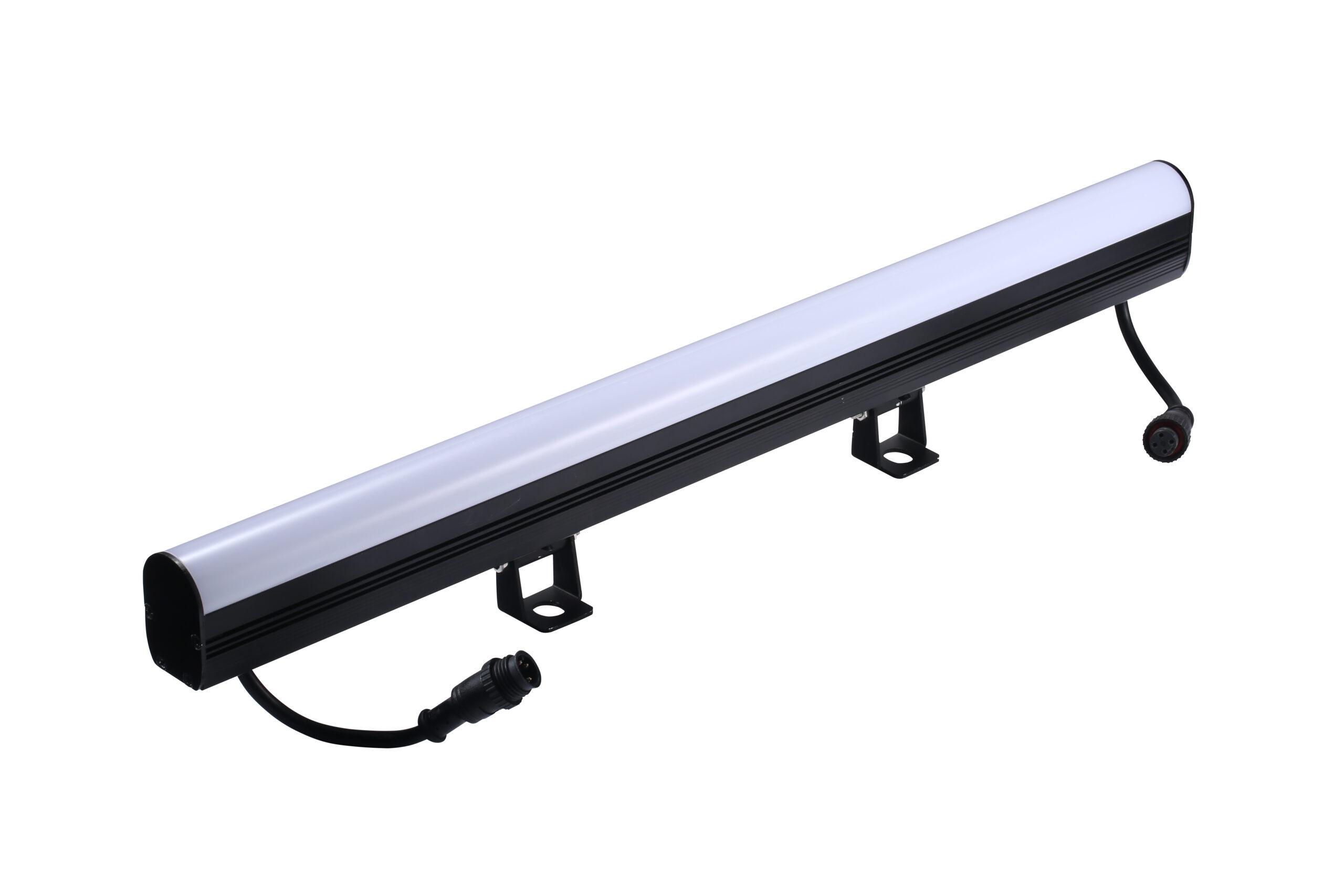

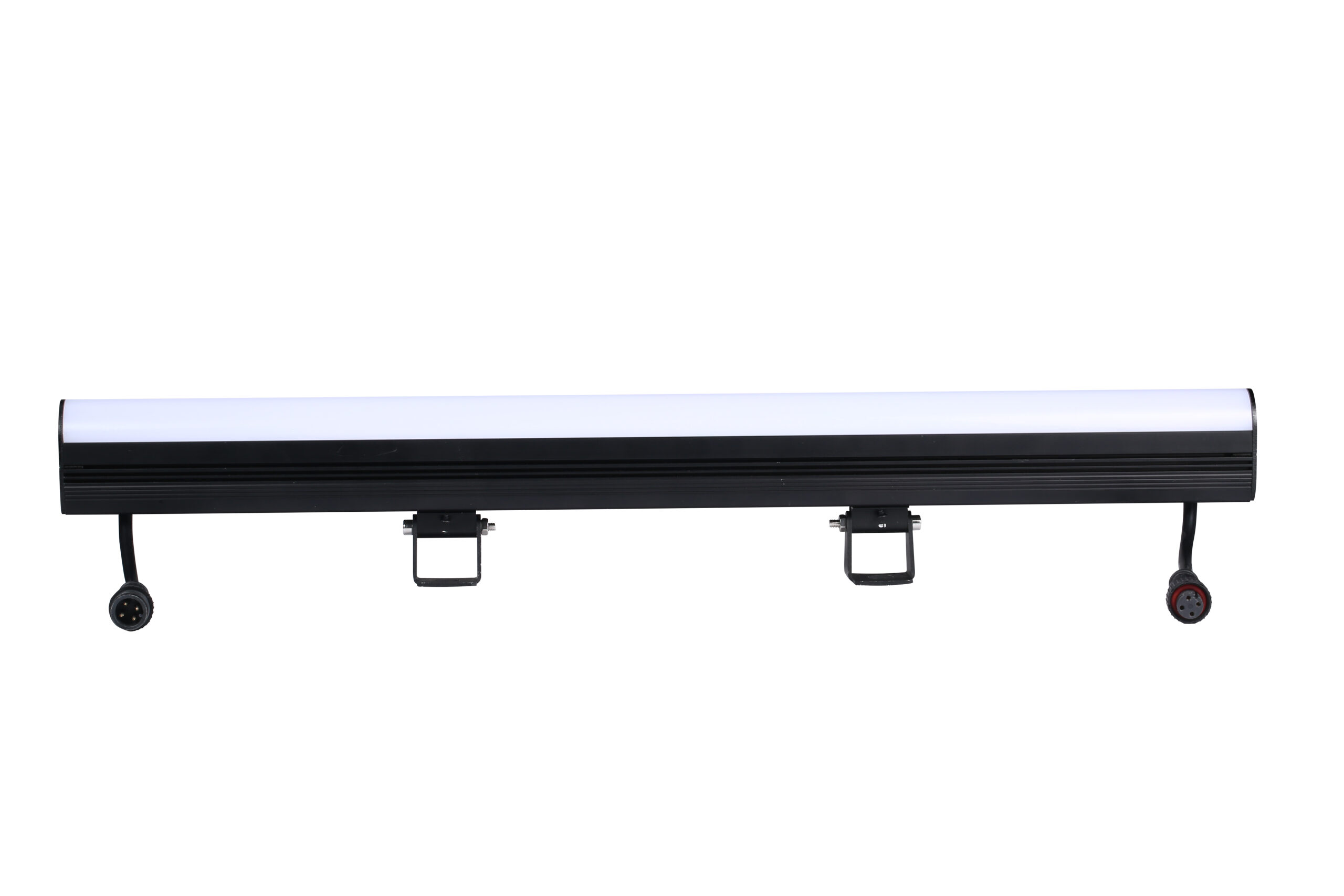

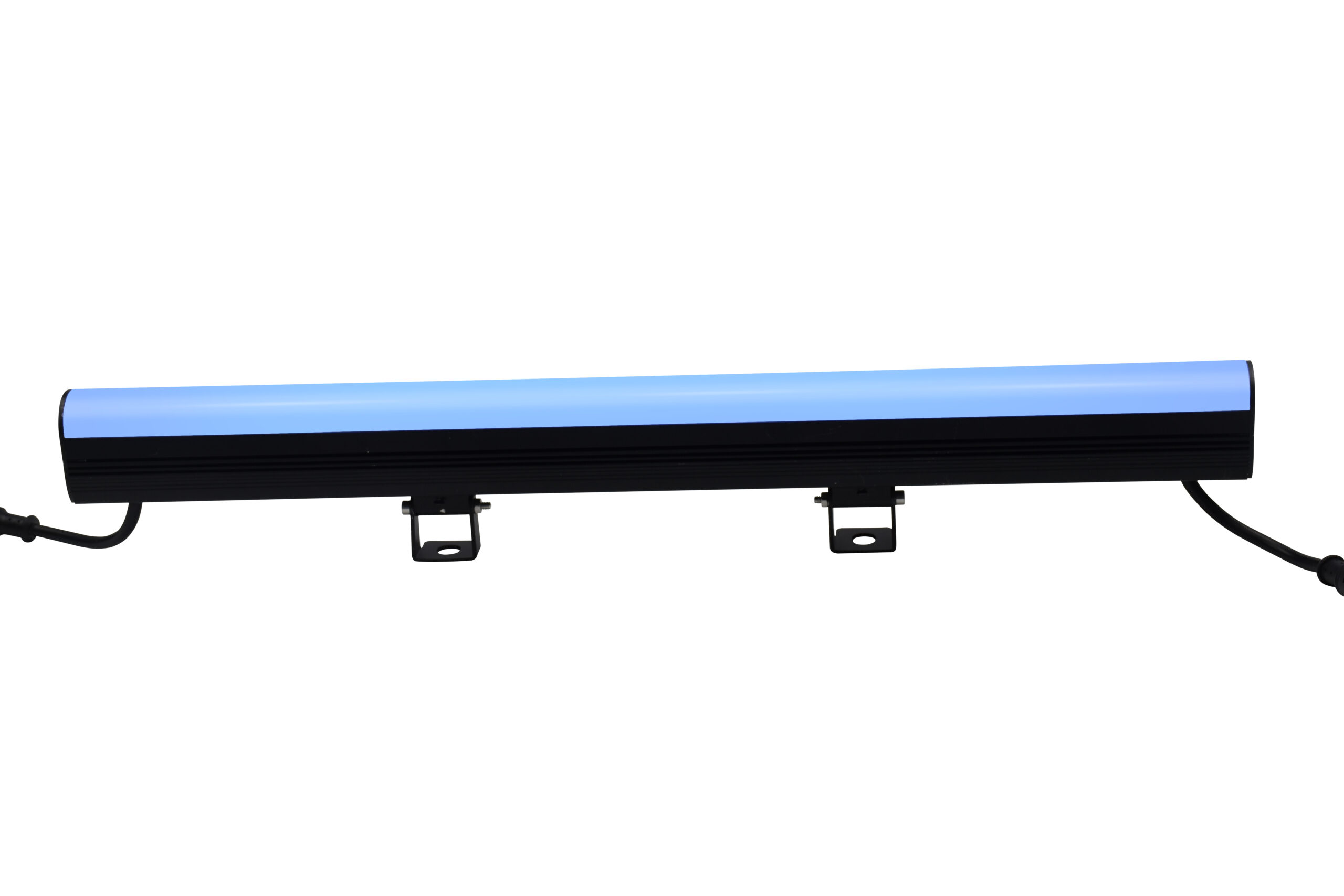

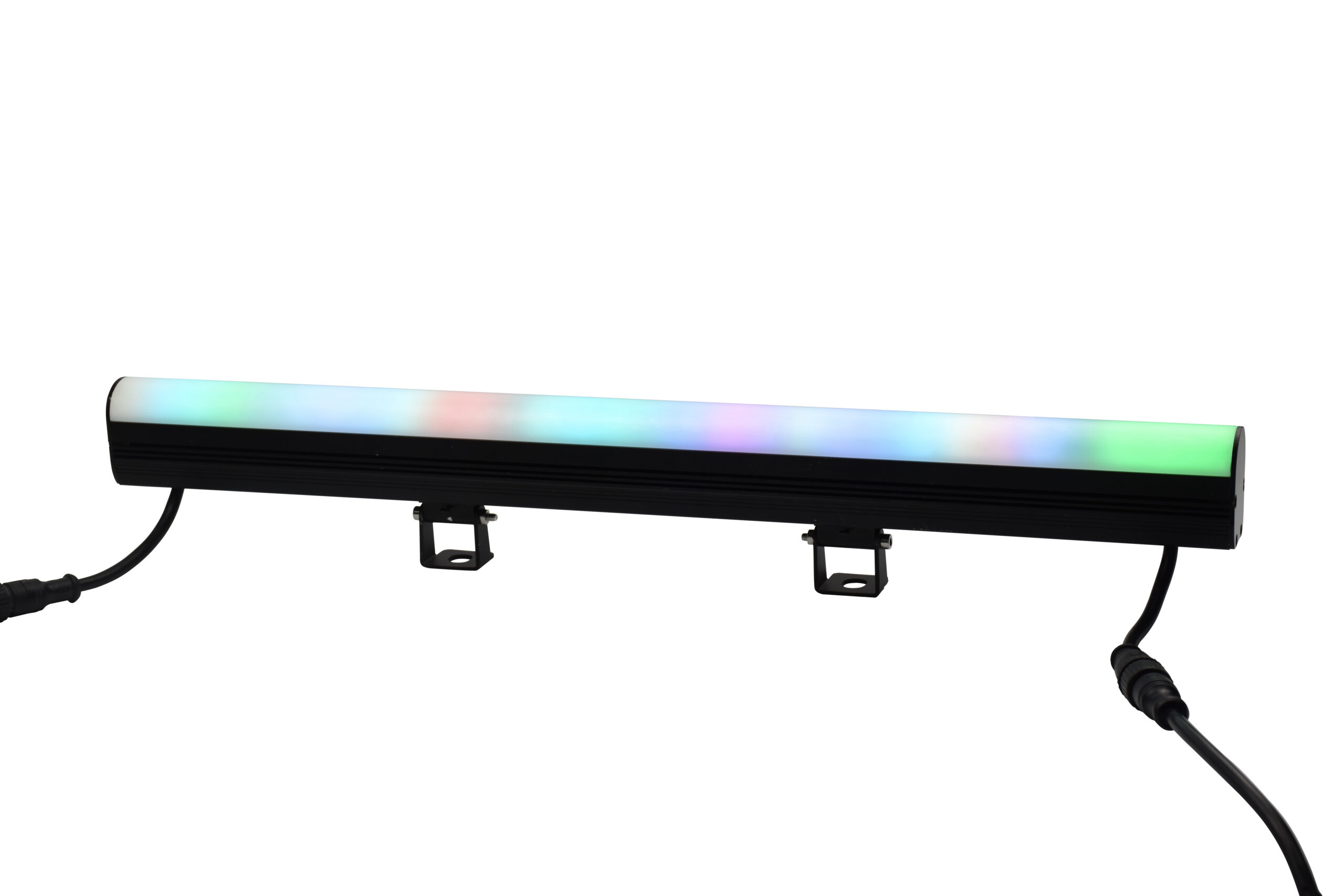

Scenografix Pixel Bar

According to the project requirements, Showjockey will choose different sizes and light effect masks to achieve the best stage design, only for meeting the needs of various art venues and design specifications.

Quick info
Category:

描述

Features

  • 180 degree stable holder
  • Different way of installation

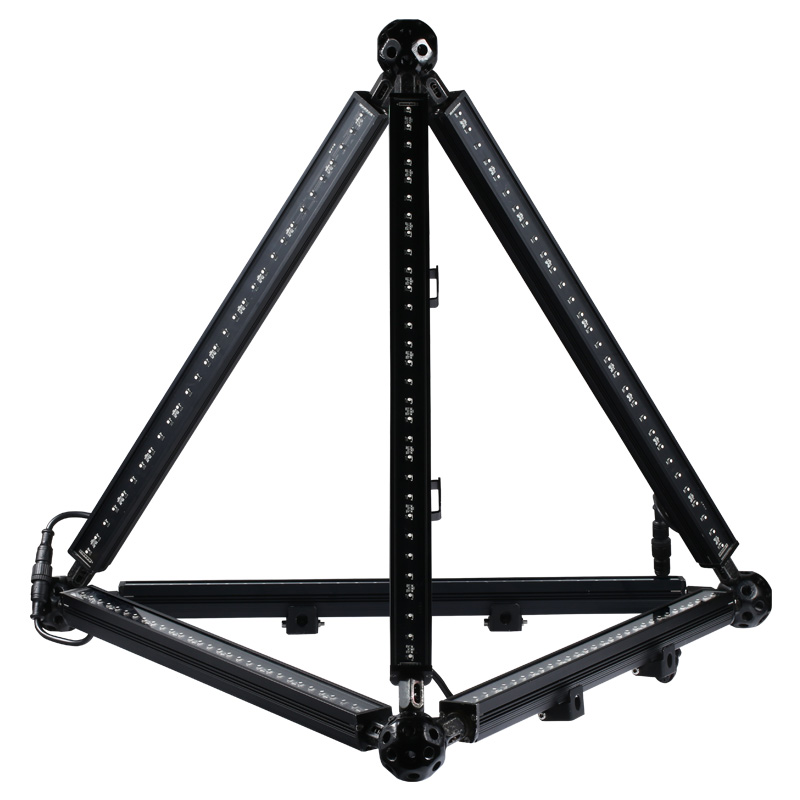

  • 3D structure through ionosphere
  • The light body is aluminum of excellent heat dissipation

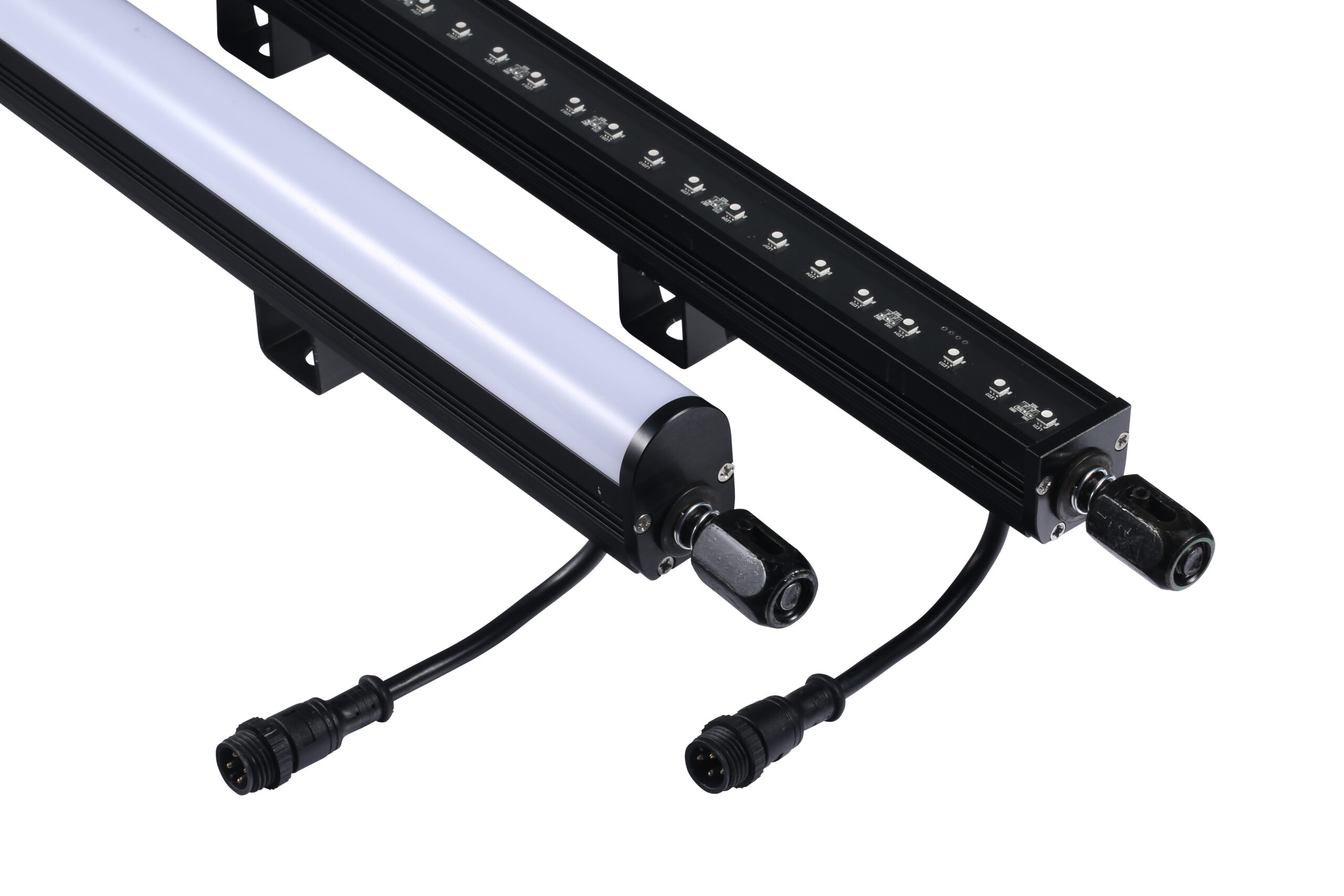

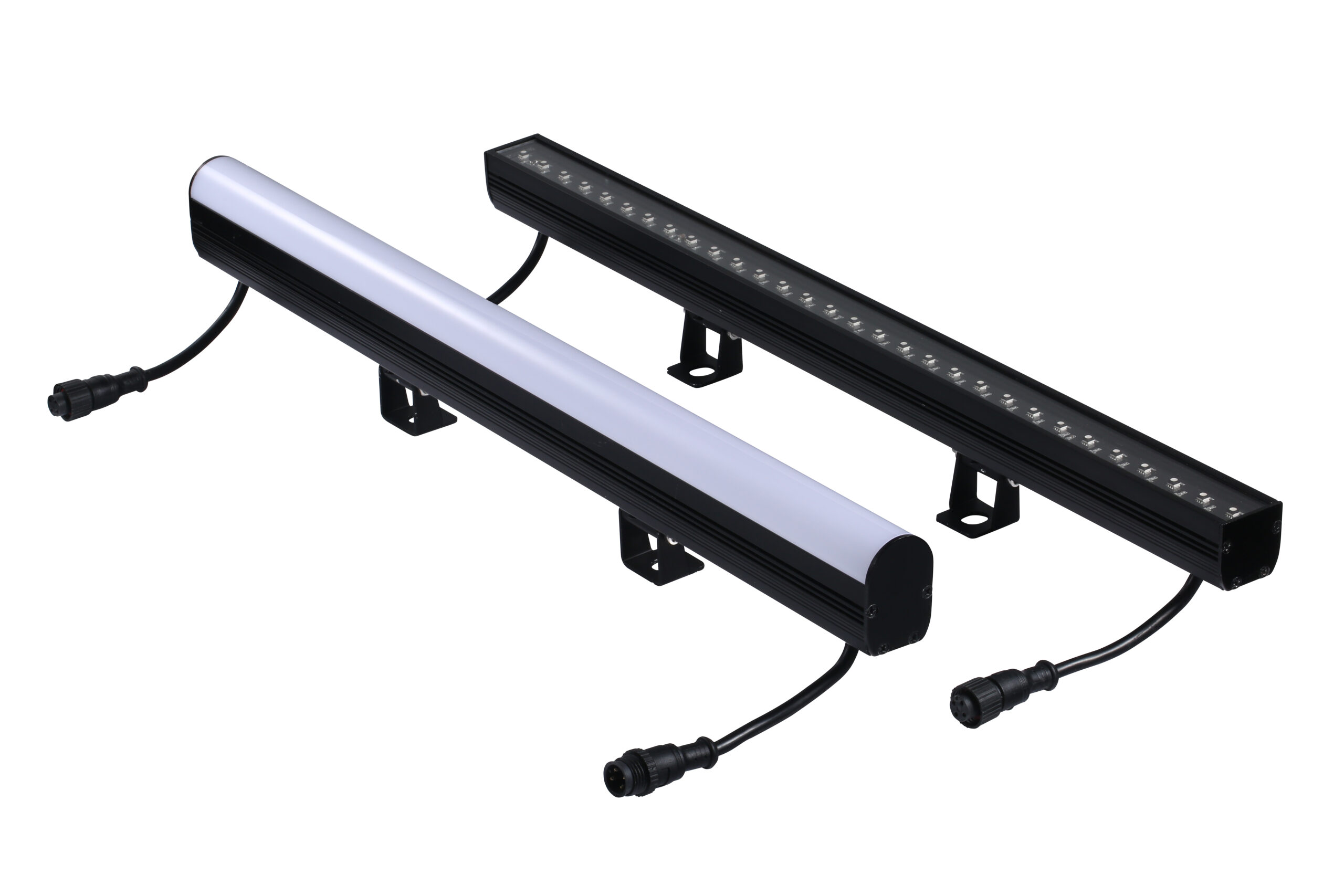

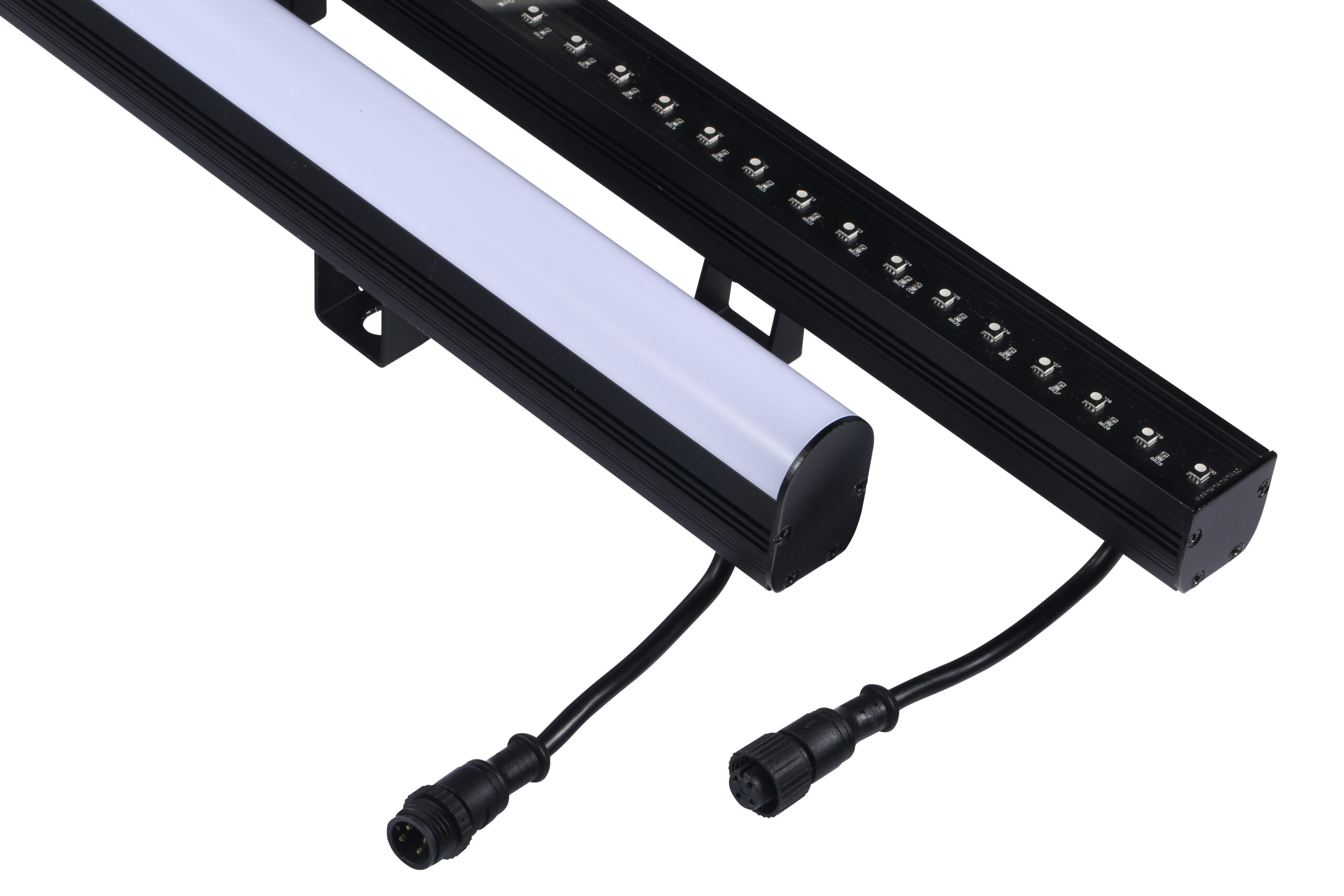

  • Different surface cover for your option
  • Milky, transparent, strips, or other customized color
  • Easy for installation and replacement DMX protocol
  • It achieves the function of fading, color running, sound control, flash or video display
  • DMX address can be customized for any channels
  • Double DMX signals distance 100m,works very stable 100M
  • Multiple methods of wire connection, saving wires time and money
  • Anodized, can be insulated, it can reach 8 us/m, not ready to scratch
  • Face to world from 2014

Specifications

Optical: Light Source: SMD RGB 3-in-1 LED’s
LED QTY: 60 LEDs
Color Resolution: 8 bits per color (24 bit per pixel)
Viewing Angle: 120 x 120 degrees
Pixels Per Fixture: 1-60 pixels
Illuminance – white frost filter (included): 20 lm
Illuminance – black stealth filter (installed): 10 lm
Pixel Pitch (pixel center-to-center) 16.5mm
50,000 Hours Life
PWM (Pulse Width Modulation): 3.6KHz
ELECTRICAL: Power and Current: 15 W, 0.63 A @ DC24 V
Optional ITEMS: Round frosted cover (x1)
Square froster cover (x1)
Round smoked cover (x1)
Square smoked cover (x1)
3 or 4 Core cable
Construction / Physical Dimensions: 39.37 x 0.98 x 1.42 in (1000 x 25 x 36 mm)
Weight: 1.76 lb (0.8 kg)
Exterior Color: Black
Housing Material: Aluminum
Certifications / Qualifications CE, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Required Accessories Any DMX Controller
Control Control Protocol: Art-Net, Kling-Net, sACN
Control Channels: 3-180
CONNECTIONS: Data Connectors: 4-pin
4-pin Power/Data In/Out
Physical Linking: 180 Connector, Connector ball, Tripstand
Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 22 AWG)
Total max. cable length (shielded cables) between Controller and last fixture: 328 ft (100 m)
Max. cable length (shielded cables) between Controller and first  fixture: 328 ft (100 m)
Max. cable length (shielded cables) between fixtures: 33 ft (10 m)



Diagram

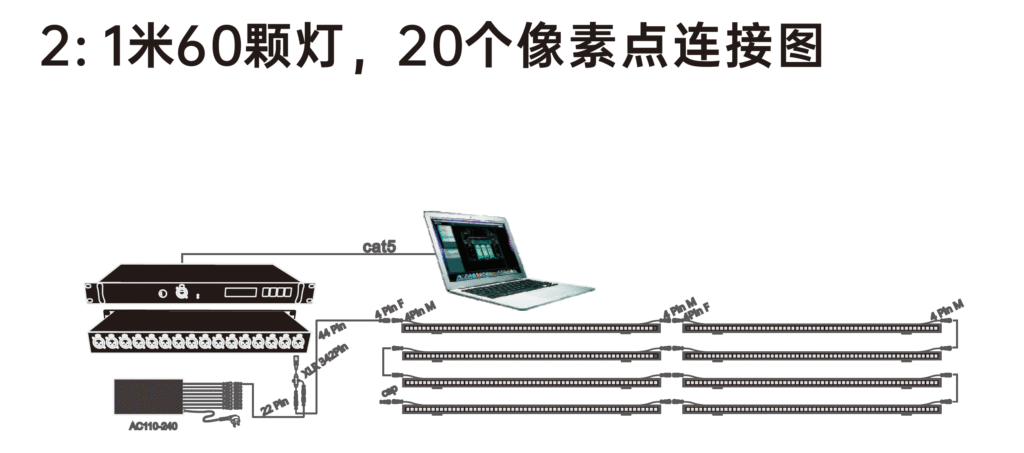

Connection Protocols

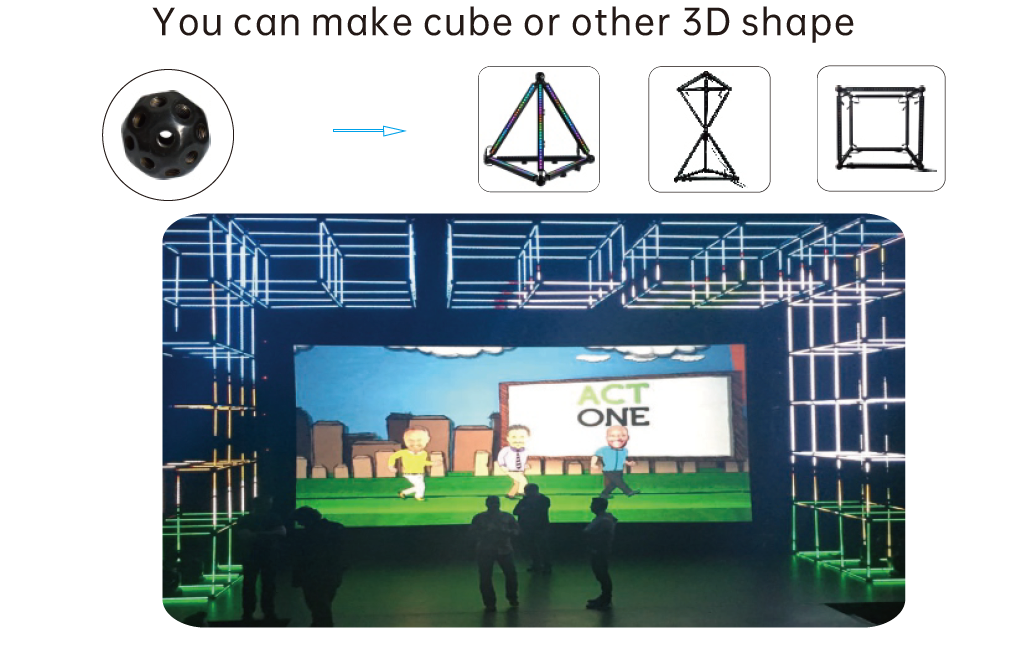

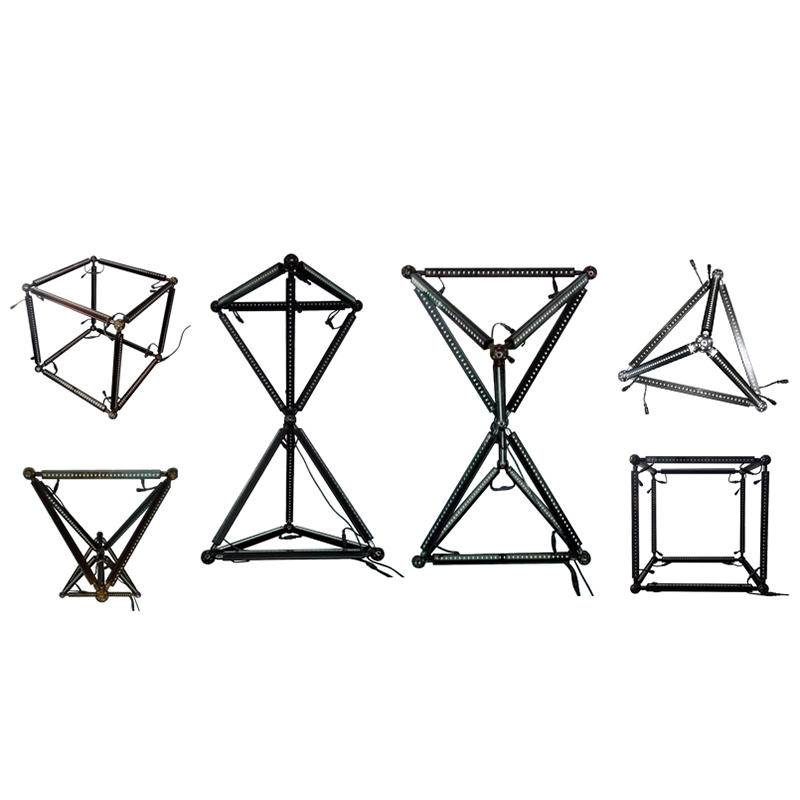

Project Effects
