描述
Features
- 180 degree aiustable holder
- Different way of installation
- 3D structure through ioing sphere
- Milky,transparent,strips,or other customized color
- Easy for installation and replacement DMX protocol
- It achieves the function of fading,color running,sound control,flash or video display
- double DMX signals,signsl distance 100m,works very stable 100M
- Muleiple methods of wire connection,saving wires,time and money
- Anodized,can be insulated,it can reach 8 us/m，not ready to scratch
- Face to world from 2014
Specifications
| Optical: | Light Source: SMD RGB 3-in-1 LED’s |
| LED QTY: 1 LEDs | |
| Color Resolution: 8 bits per color (24 bit per pixel) | |
| Viewing Angle: 360 degrees | |
| Pixels Per Fixture: 1 pixels | |
| Illuminance – white frost filter (included): 20 lm | |
| Illuminance – black stealth filter (installed): 10 lm | |
| 50,000 Hours Life | |
| PWM (Pulse Width Modulation): 3.6KHz | |
| ELECTRICAL: | Power and Current: 4 W, 0.16 A @ DC24 V |
| Optional ITEMS: | Warm Yellow 2700K – 3000K(x1) |
| Warm White 3000K – 4000K(x1) | |
| Neutral White 4000K – 5000K (x1) | |
| Cool White 5000K – 6500K (x1) | |
| 3 or 4 Core cable | |
| Construction / Physical | Bulb type： A60 |
| Weight:0.22 lb (0.1 kg) | |
| Exterior Color: clear | |
| Housing Material: Glass | |
| Certifications / Qualifications | CE, FCC |
| IP Rating: IP20, dry location | |
| Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C) | |
| Required Accessories | Any DMX Controller |
| Control | Control Protocol: Art-Net, Kling-Net, sACN |
| Control Channels:3 | |
| CONNECTIONS: | Data Connectors: 4-pin |
| 4-pin Power/Data In/Out | |
| Physical Linking: Male and female connector | |
| Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 22 AWG) | |
| Total max. cable length (shielded cables) between Controller and last fixture: 328 ft (100 m) | |
| Max. cable length (shielded cables) between Controller and first fixture: 328 ft (100 m) | |
| Max. cable length (shielded cables) between fixtures: 33 ft (10 m) |

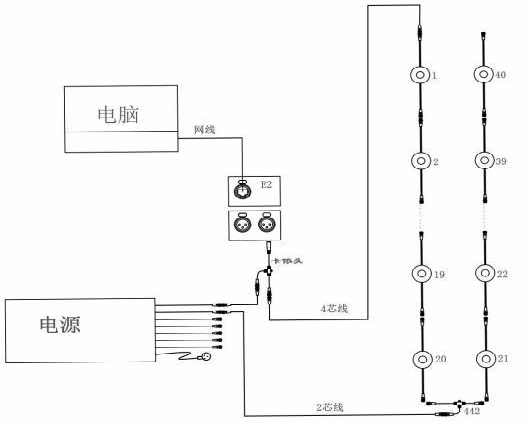

Diagram
Connection Protocols

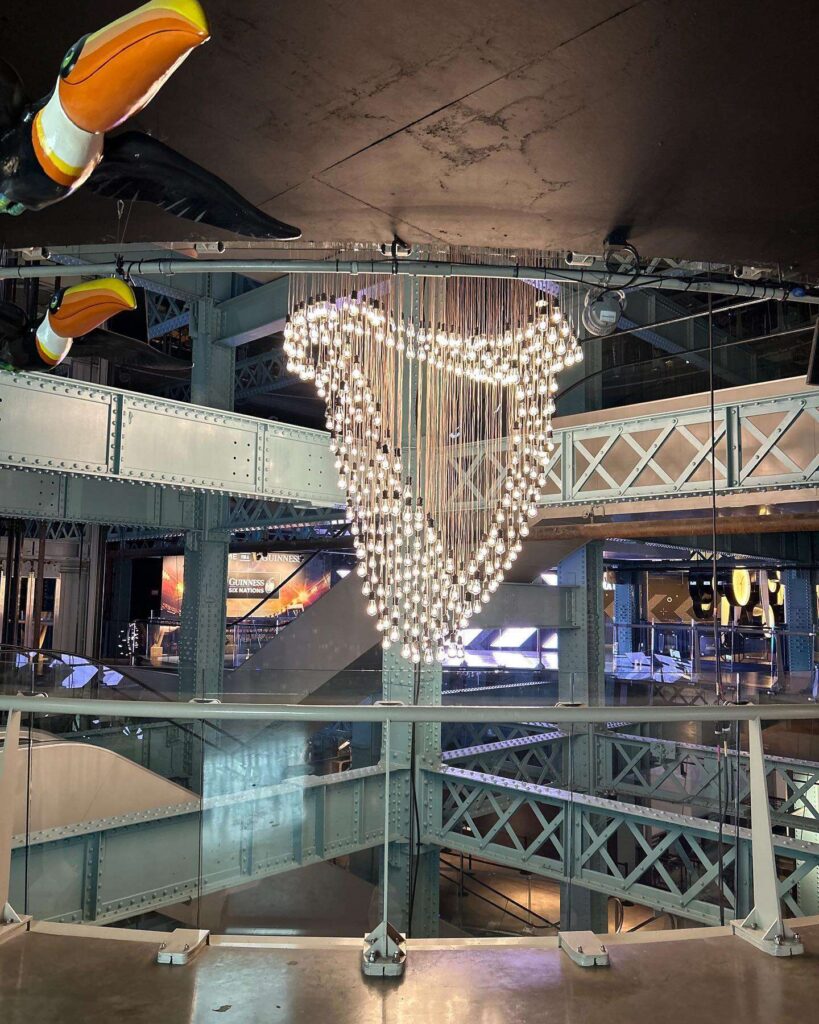

Project Effects
