描述
Features
- Compatible with DMX PWM decoder, DMX SPI decoder
- Can control RGB LED lights, RGBW and monochrome white lights
- Compatible with all third-party software that supports artnet
- Each port has 512 channels, for a total of 1024 channels
- Comes with built-in network switch function, no need for expansion dock
- The distance between controllers can be up to 100 meters
- Plug and play, no need to install any drivers
- Dual network ports, 100M network
- The controller parameters can be set remotely, including IP and domain
- Compatible with various DMX lights, including moving head lights, par lights,
- Pocket-sized, easy to carry for presentations
Specifications
| Control Features: | Data supply for DMX Pixie Strip |
| Manual RGB mode | |
| Manual Dimming and Strobe Control | |
| Full Pixel Mapping Control | |
| Control Quantity: | ArtNet: Input |
| Drives up to 680 Pixels (170 Pixels per port) | |
| 4 x Non-Powered Pixel Outputs | |
| Input Universes:4 | |
| Connections: | Power: Poweradapter Input |
| Two Artnet ethernet ports | |
| 1 x 10/100 Mbit/s Ethernet Ports | |
| Mounting Options: | Bolt to add a clamp to hang from truss (clamp and truss not included) |
| Desktop | |
| Enclosure Material :aluminum | |
| Electrical: | Input Power :12V DC |
| Power Consumption: 3.5W | |
| |-4°F to 113°F (-20°C to 45°C) | |

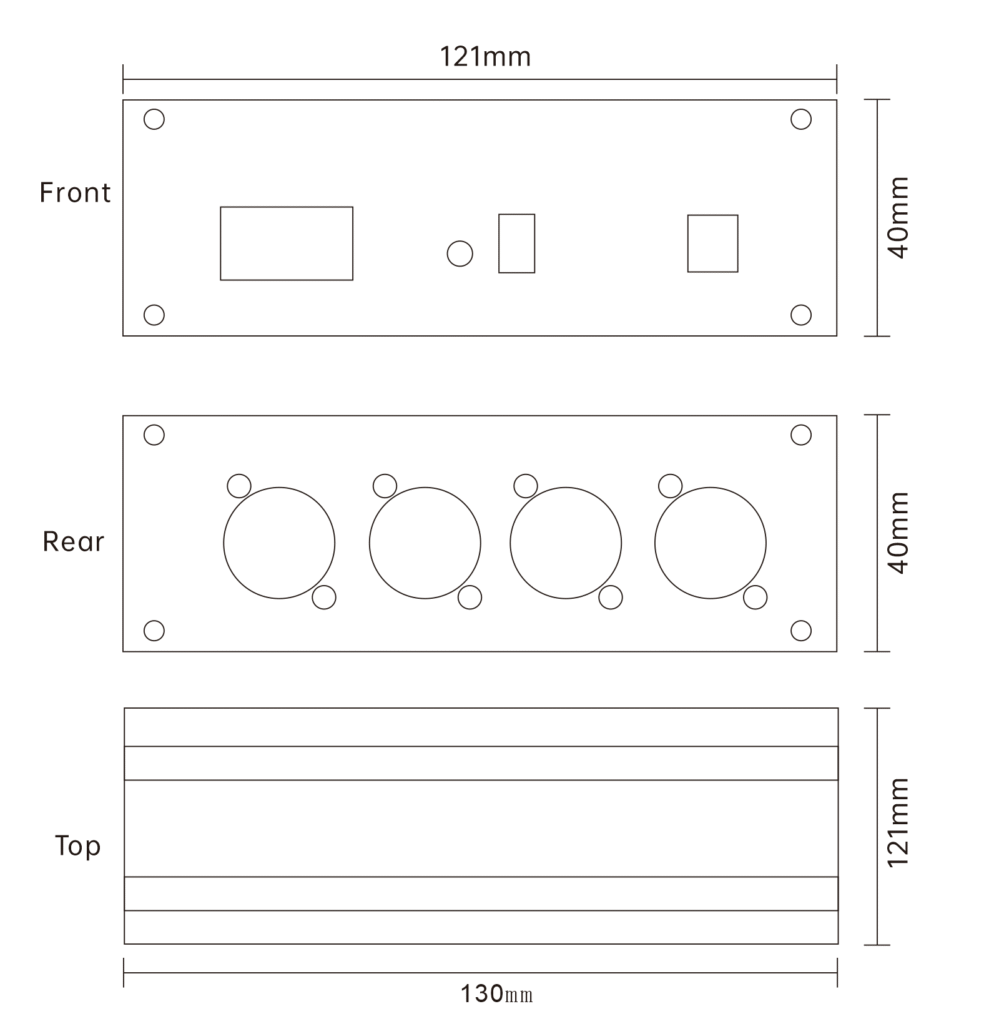

| Dimensions / Weight: | Dimensions (LxWxH): 4.76 x 4.76 x 1.77In / 135×63.5x43mm |
| Weight: 0.882 lb. / 0.4 kg. | |
| Approvals: | CE,FCC,RoHS |
| Included Accessories: | (1) Power Adapter for controller |
| (2) RJ45 Cable | |
| (3) User Manuel |
Diagram

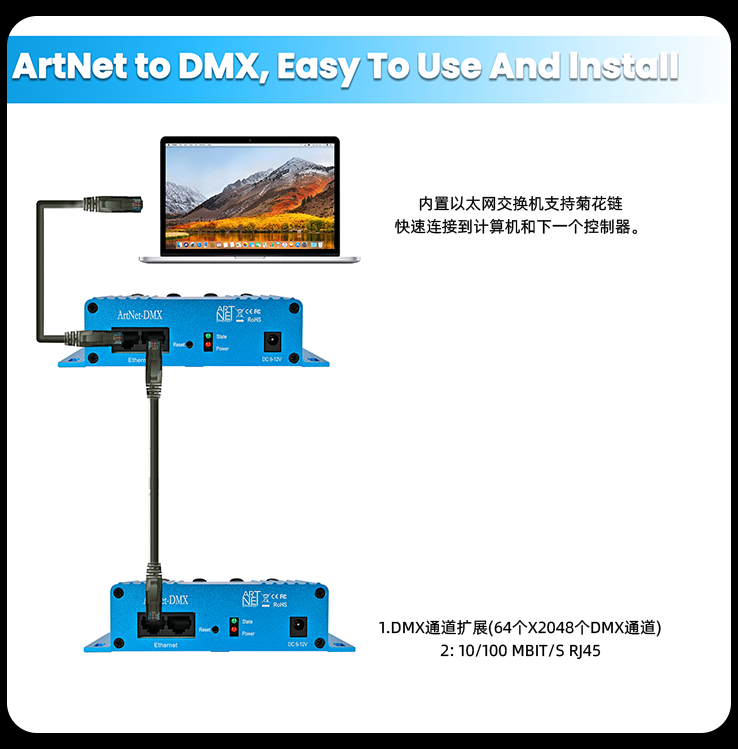

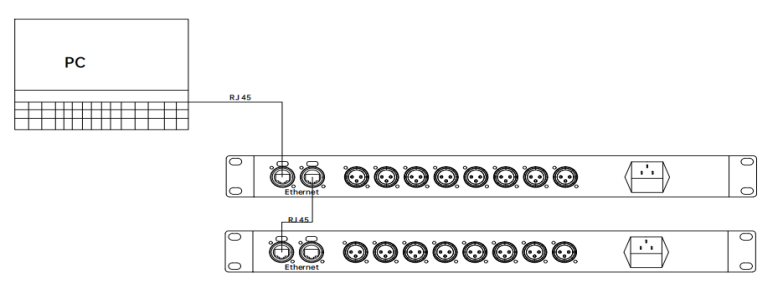

Connection Protocols
Product Manual
