Features
- True 360° illumination, no blind spots
- Multiple installation methods to easily cope with any scenario
- 3D structure through the spherecapable of constructing complex 3D models
- The thick plastic shell can withstand more weight and will not deform.
- High-transmittance casing for more uniform light emission
- Milky,transparent,strips,or other customized color
- Easy for installation and replacement DMX protocol
- It achieves the function of fading,color running,sound control,flash or video display
- Market-leading new chip packaging technology results in higher transmission speeds and greater stability.
- High lighting consistency, no color difference
- Muleiple methods of wire connection,saving wires,time and money
- Anodized,can be insulated,it can reach 8 us/m，not ready to scratch
- Stable light emission, say goodbye to flickering and jitter.
Specifications
| Optical: | Light Source: SMD RGB 3-in-1 LED’s |
| LED QTY: 54 LEDs | |
| Color Resolution: 8 bits per color (24 bit per pixel) | |
| Viewing Angle: 360 degrees | |
| Pixels Per Fixture: 18 pixels | |
| Illuminance – white frost filter (included): 20 lm | |
| Illuminance – black stealth filter (installed): 10 lm | |
| Pixel Pitch (pixel center-to-center) 55.5mm | |
| 50,000 Hours Life | |
| PWM (Pulse Width Modulation): 3.6KHz | |
| ELECTRICAL: | Power and Current: 18 W, 0.75 A @ DC24 V |

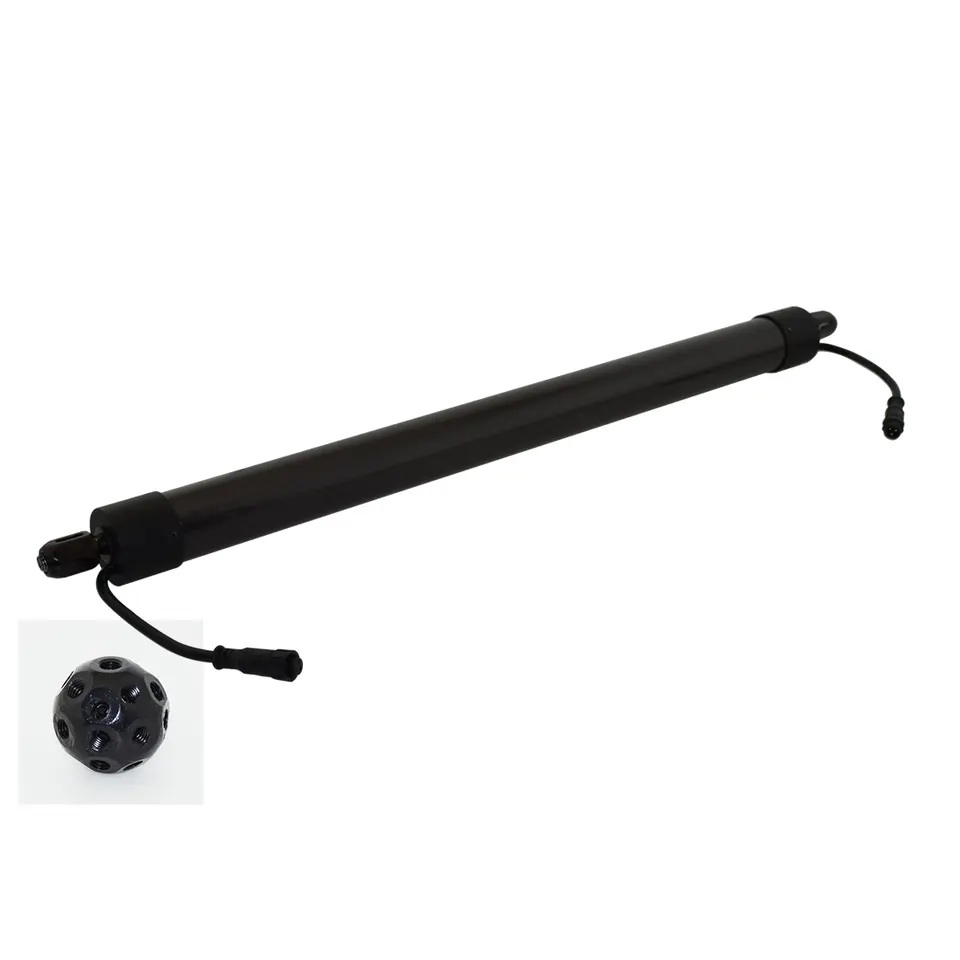

| Optional ITEMS: | Black frosted cover (x1) |
| Transparent cover (x1) | |
| Diameter:40/50mm | |
| Other custom diameters | |
| 4 Core cable | |
| Construction / Physical | Dimensions: 39.37 x Ф1.57 in (1000 xФ50 mm) |
| Weight: 1.76 lb (0.8 kg) | |
| Exterior Color: White | |
| Housing Material: Plastic | |
| Certifications / Qualifications | CE, FCC |
| IP Rating: IP65, dry location | |
| Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C) | |
| Required Accessories | Any DMX Controller |
| Control | Control Protocol: Art-Net, Kling-Net, sACN |
| Control Channels: 54 | |

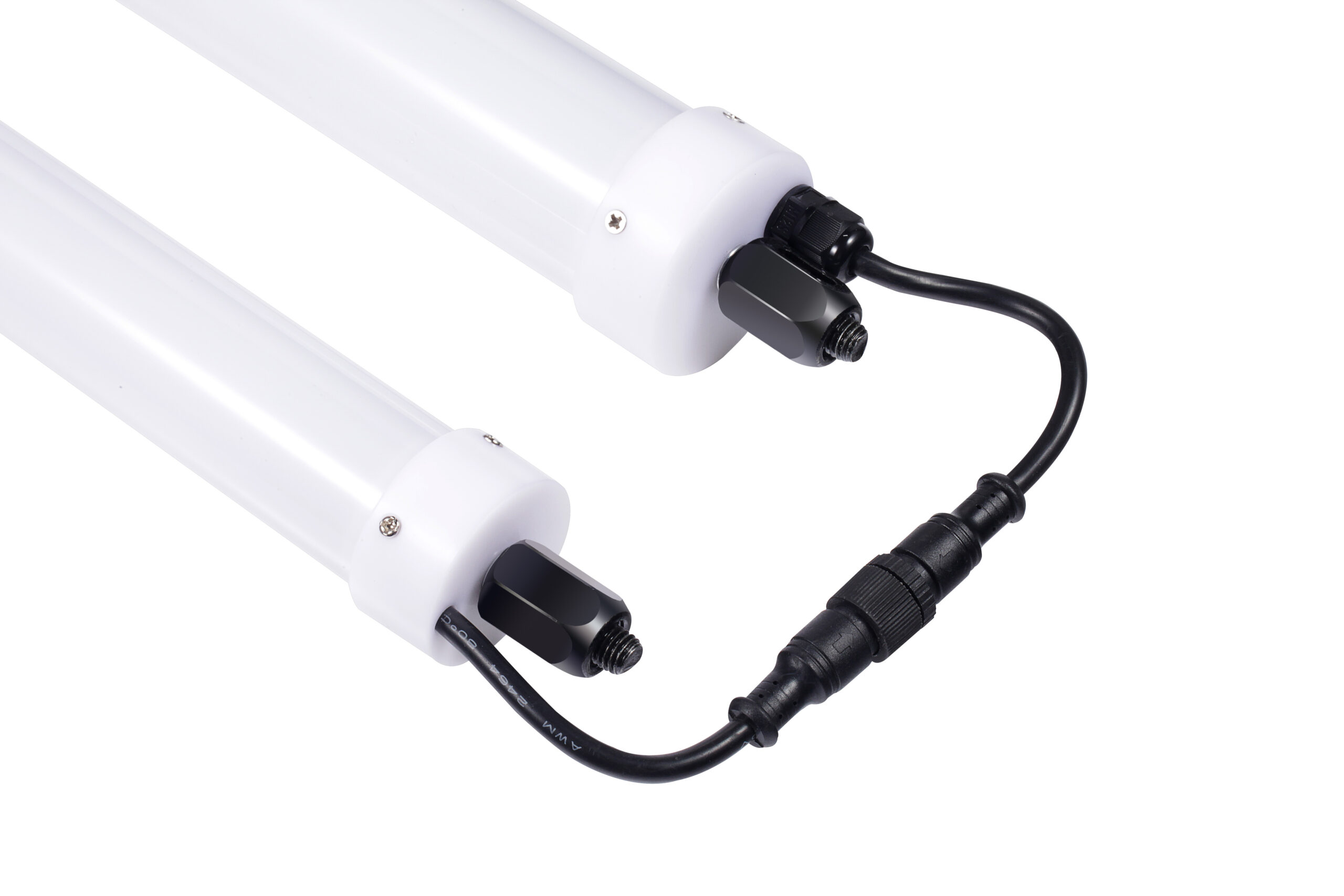

| CONNECTIONS: | Data Connectors: 4-pin |
| 4-pin Power/Data In/Out | |

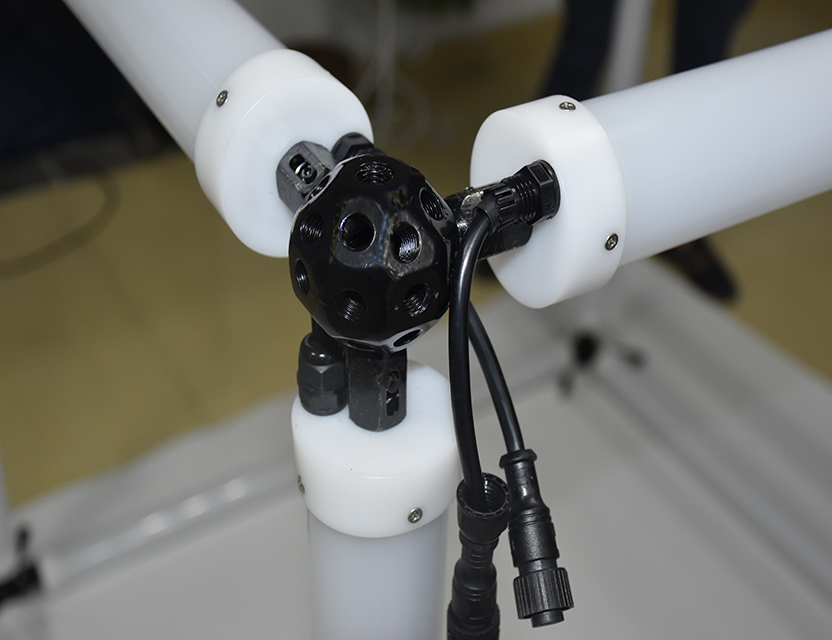

| Physical Linking: 180 Connector, Tripstand | |
| Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 22 AWG) | |
| Total max. cable length (shielded cables) between Controller and last fixture: 328 ft (100 m) | |
| Max. cable length (shielded cables) between Controller and first fixture: 328 ft (100 m) | |
| Max. cable length (shielded cables) between fixtures: 33 ft (10 m) |

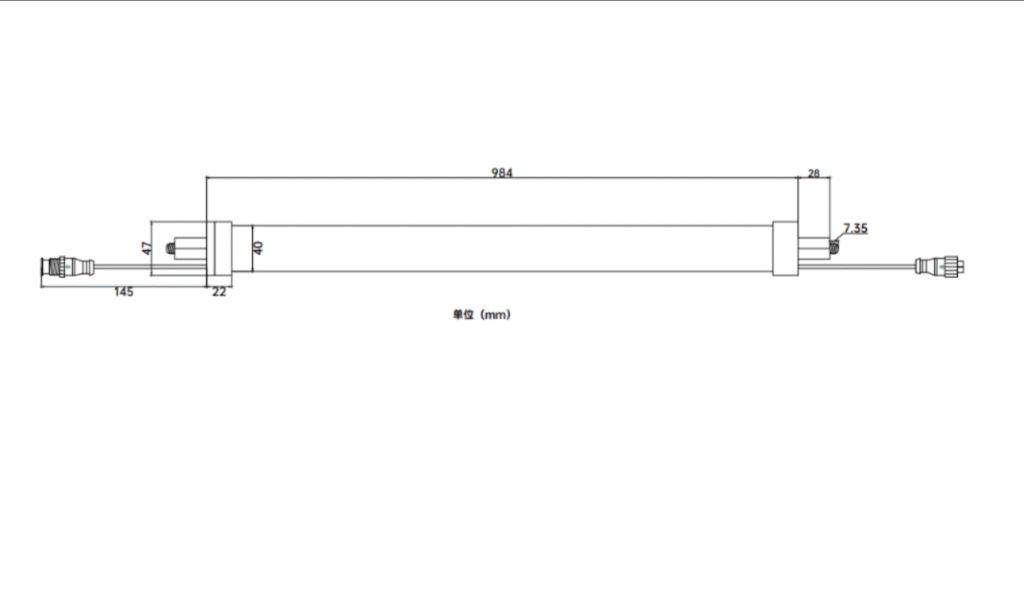

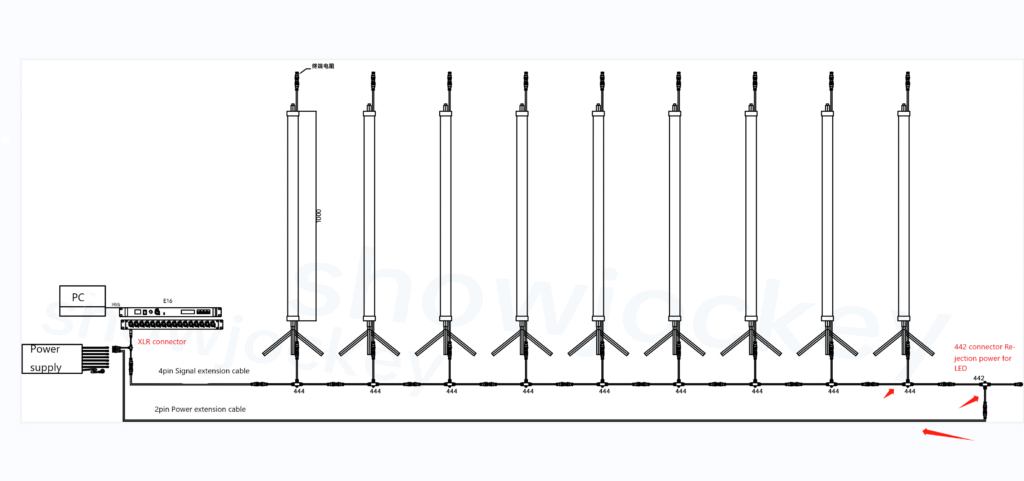

Diagram
Connection Protocols

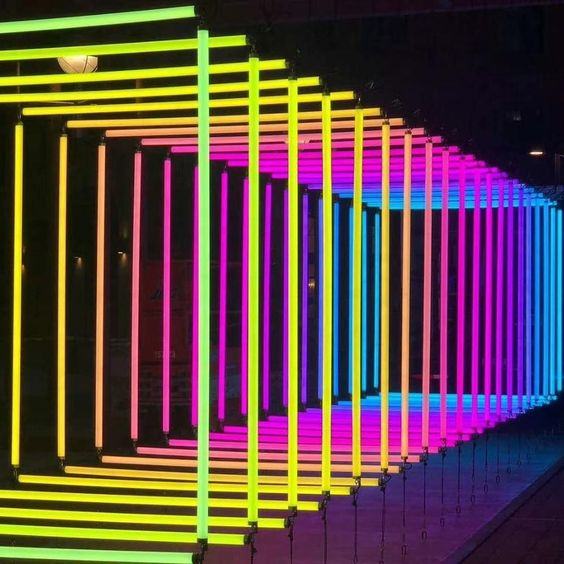

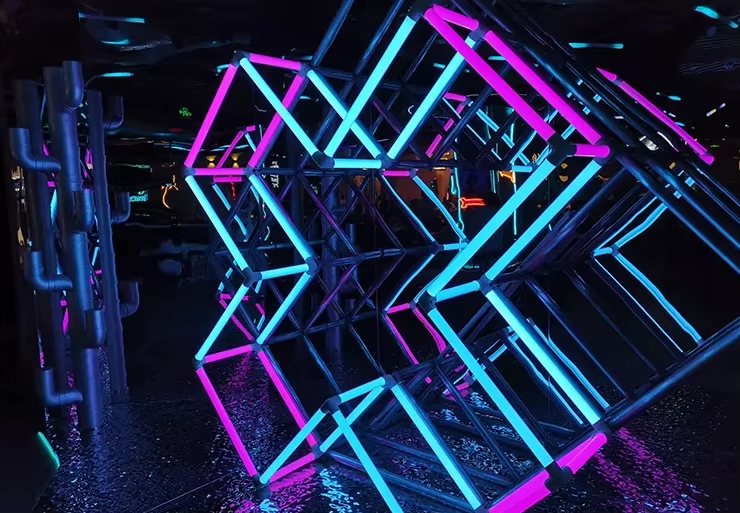

Project Effects
